Panel, B-Pillar Trim: Removal: Removal

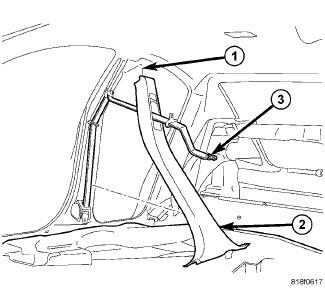

Fig 1: B-Pillar Trim
GC0123000Courtesy of CHRYSLER GROUP, LLC
  1. Remove sill trim panel. Refer to PLATE, SCUFF, DOOR SILL, REMOVAL .
  2. Remove seat belt anchor (3). Refer to RETRACTOR, SEAT BELT, SECOND ROW, REMOVAL .
  3. Using trim stick (special tool #C-4755, Trim Stick), remove SRS airbag cover located at top of B-pillar.
  4. Move seat belt adjuster all the way down exposing the B-pillar screw. Remove B-pillar screw.
  5. Using trim stick (special tool #C-4755, Trim Stick), pry up B-pillar and route seat belt through B-pillar trim. Remove B-pillar bottom (2) first and remove trim from B-pillar.
