Bezel, Shifter: Removal: Manual

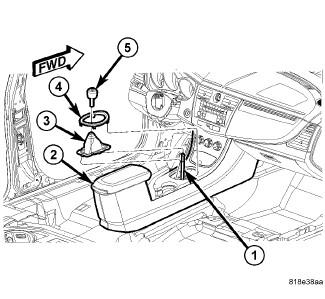

Fig 1: Shift Bezel
GC0122987Courtesy of CHRYSLER GROUP, LLC
  1. Pull up on shifter knob (5) and remove from shifter shaft (1).
  2. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, pry up on bezel (4) and remove from shifter pod).
