Bezel, Shifter: Removal: Automatic

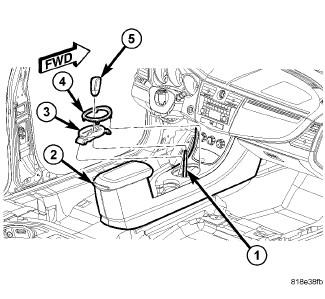

Fig 1: Shift Bezel
GC0122986Courtesy of CHRYSLER GROUP, LLC
  1. Pull up on shifter knob (5) and remove.
  2. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, pry up on bezel (4) and remove from shifter pod.
