Removal - Avenger

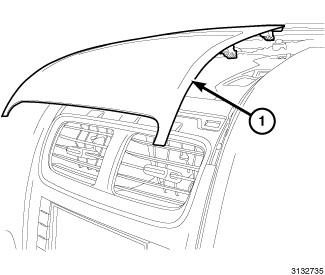

Fig 1: Center Bezel Hood

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable.
Using trim stick (special tool #C-4755, Trim Stick) or equivalent, pull upward to disengage the retaining clips and remove the center bezel hood (1).

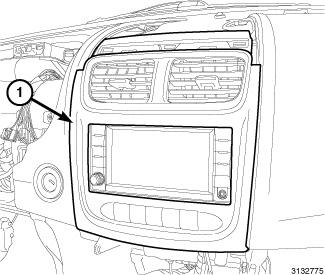

Fig 2: Center Trim Bezel - Avenger
Courtesy of CHRYSLER GROUP, LLC
Using trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the retaining clips, disconnect and remove the center trim bezel (1).
