Front Panel

Fig 1: Right And Left Center Rail Trim & Push Pins
GC0122897Courtesy of CHRYSLER GROUP, LLC
  1. Open top to vertical position. Refer to DECKLID/HATCH/LIFTGATE/TAILGATE  .
  2. Using a trim stick or equivalent, gently remove both push pins (2) in the bottom of the right and left center rail trim (1).
  3. Gently pry off both left and right center rail trim.

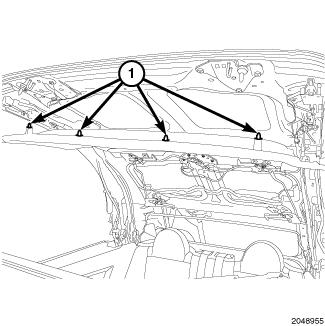

    Fig 2: Rail Trim Push Pins
    GC0122898Courtesy of CHRYSLER GROUP, LLC
  4. Using a door trim panel tool or equivalent, gently pry off the front push pin fasteners and then the rear fasteners and remove front panel headliner.
  5. Remove any push pins that remain in the front panel.
  6. Remove the headliner from the vehicle.
