Bracket, Rear: Removal: Removal

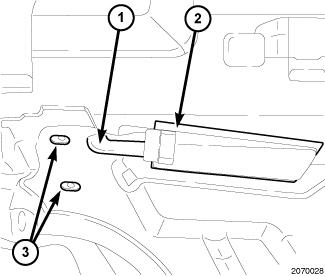

Fig 1: Rear Bracket Mounting Fasteners
GC0122892Courtesy of CHRYSLER GROUP, LLC
  1. Remove the front trunk carpeted panel.
  2. Remove the mounting fasteners (3) from the rear bracket (1).
  3. Using a grease pencil or equivalent, mark the position of the rear bracket to aid in installation.
  4. Remove the rear bracket from the vehicle.
