Pad, Isolator: Removal: Removal

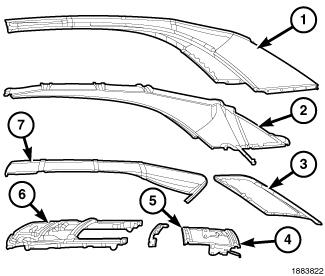

Fig 1: Folding Top Cover Components
GC0122880Courtesy of CHRYSLER GROUP, LLC
  1. Remove the top cover (1) back to the rear panel. Refer to COVER, FOLDING TOP, REMOVAL .
  2. Disengage the isolator pad (7) from the front header (6).
  3. Pull upward on the rear retainer and disengage from the rear panel (3).
  4. Remove the pad from the vehicle.
