Body Gap And Flush Measurements - Sedan
NOTE:
All measurements are in millimeters.

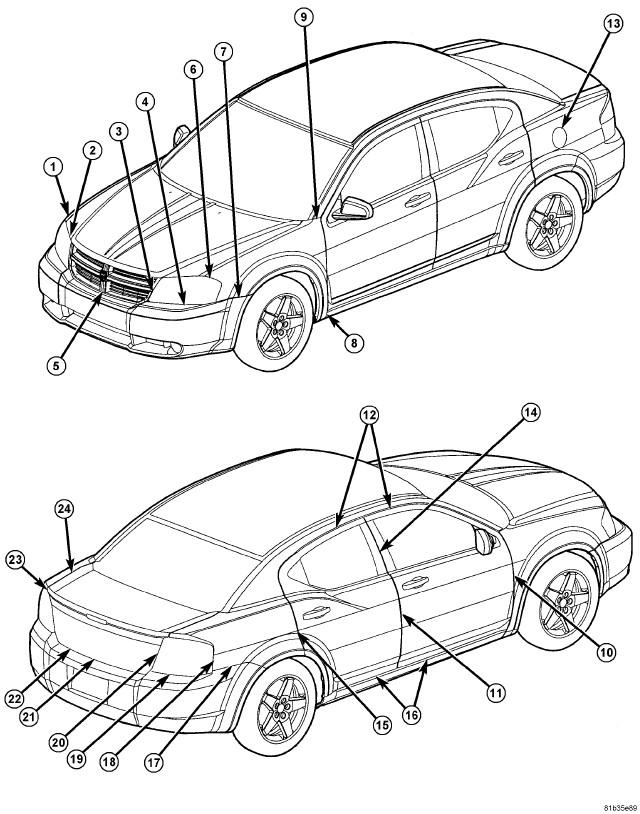

GAP AND FLUSH MEASUREMENTS
| DIMENSION | LOCATION | GAP | FLUSH |
|---|---|---|---|
| 1 | Fender to Hood | 3.5 +/- 1.2 Parallel within 1.5 and Symmetrical within 1.5 LH to RH | Headlamp U/F 1.1 +/- 2.0 Consistent within 2.0 and Symmetrical within 3.0 LH to RH |
| 2 | Headlamp to Hood | 3.5 +/- 1.7 Parallel within 1.5 and Symmetrical within 2.0 LH to RH | Headlamp U/F 1.1 +/- 2.0 Consistent within 2.0 and Symmetrical within 3.0 LH to RH |
| 3 | Headlamp to Grille | 2.0 +/- 2.0 Parallel within 2.0 and Symmetrical within 2.5 LH to RH | - |
| 4 | Headlamp to Fascia | 2.0 +/- 2.0 Parallel within 2.0 and Symmetrical within 3.0 LH to RH | - |
| 5 | Grille to Fascia | Net to 1.0 | - |
| 6 | Headlamp to Fender | 2.1 +/- 1.7 Parallel within 2.0 | Headlamp U/F 1.0 +/- 2.0 Consistent within 2.0 |
| 7 | Fascia to Fender | Net to 1.0 | Fascia 0.5 O/F @ Front to 0.4 U/F to Flush @ Rear +/- 1.0 Consistent within 1.5 |
| 8 | Fender to Body Side Aperture Sill | 2.0 +/- 1.0 Parallel within 1.5 | Fender 1.0 O/F +/- 1.5 Consistent within 1.5 |
| 9 | Fender to Body Side Aperture | 4.0 @ X = 435 2.5 @ X = 480 +/- 1.0 | - |
| 10 | Fender to Front Door | 4.0 above Z = 265 +/- 1.0 4.2 below Z =2 65 +/- 1.0 Parallel within 1.5 | Fender 1.0 O/F +/- 1.0 Consistent within 1.5 |
| 11 | Front Door to Rear Door (Below Belt) | 4.5 +/- 1.2 Parallel within 1.5 | Front Door O/F 1.0 +/- 1.0 Consistent within 1.5 |
| 12 | Door Headers to Body Side Aperture | 4.0 +/- 1.2 Parallel within 1.5 | Door U/F 1.7 +/- 1.2 Consistent within 1.5 |
| 13 | Fuel Filler Door to Quarter Panel | 3.0 +/- 0.8 Parallel within 0.8 | Fuel Filler Door U/F 0.5 +/- 1.0 Consistent within 1.5 |
| 14 | Front Door to Rear Door (Above Belt) | 4.0 +/- 1.2 Parallel within 1.5 | 0.0 +/- 1.5 Consistent within 1.5 |
| 15 | Rear Door to Quarter Panel | 4.0 +/- 1.2 Parallel within 1.5 | 0.0 +/- 1.0 Consistent within 1.5 |
| 16 | Front and Rear Door to Body Side Aperture Sill | 6.0 +/- 1.5 Parallel within 1.5 | - |
| 17 | Fascia to Body Side Aperture | Net to 1.0 | 0.0 +/- 1.0 Consistent within 1.5 |
| 18 | Tail Lamp to Body Side Aperture | 2.0 +/- 2.0 Parallel within 2.0 | Tail Lamp U/F 1.0 +/- 2.0 Consistent within 2.0 |
| 19 | Tail Lamp to Fascia | 2.0 +/- 2.0 Parallel within 2.0 | 0.0 +/- 2.0 Consistent within 2.0 |
| 20 | Decklid to Tail Lamp | 4.0 +/- 2.0 Parallel within 2.0 and Symmetrical within 2.0 LH to RH | - |
| 21 | Decklid to Fascia | Cross/Car 5.1 +/- 2.0 | - |
| 22 | Decklid to Fascia | U/D 5.9 +/- 2.0 Parallel within 2.0 | - |
| 23 | Body Side Aperture to Decklid (Vertical) | 5.0 +/- 1.5 Parallel within 1.5 and Symmetrical within 1.5 LH to RH | Body Side Aperture O/F 1.0 +/- 1.5 Consistent within 1.5 |
| 24 | Body Side Aperture to Decklid (Horizontal) | 4.0 +/- 1.5 Parallel within 1.5 and Symmetrical within 1.5 LH to RH | Body Side Aperture O/F 0.5 +/- 1.5 Consistent within 1.5 |
| O/F = Over Flush U/D = Up/Down |
U/F = Under Flush F/A = Fore/Aft |
||
