Body Gap And Flush Measurements - Convertible

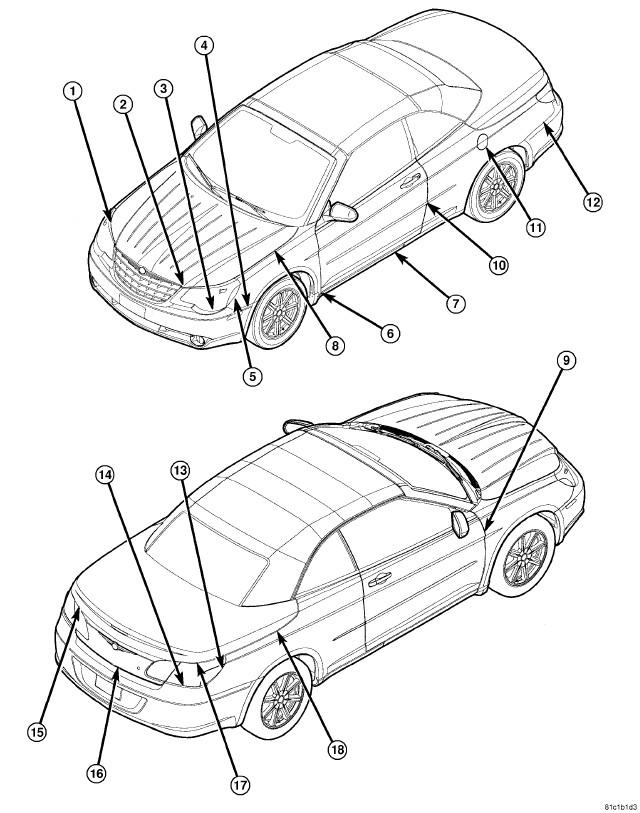

Fig 1: Body Gap And Flush Measurements - Convertible

Courtesy of CHRYSLER GROUP, LLC

NOTE:

All measurements are in millimeters.

GAP AND FLUSH MEASUREMENTS

DIMENSION	LOCATION	GAP	FLUSH
1	Headlamp to Hood	3.5 +/- 1.7 Parallel within 1.5	Headlamp U/F 1.0 +/- 2.0 Parallel within 2.0
2	Fascia to Hood	6.0 +/- 1.5 Parallel within 2.0	Fascia U/F 2.5 +/- 2.0 Consistent within 2.0
3	Headlamp to Fascia	2.0 +/- 2.0 Parallel within 2.0	-
4	Fascia to Fender	Net to 1.0	+/- 1.0 Consistent within 1.5
5	Headlamp to Fender	2.0 +/- 1.7 Parallel within 2.0	Headlamp U/F 1.0 +/- 2.0
6	Fender to Body Side Aperture Sill Gap	2.0 +/- 1.0 Parallel within 1.5	Fender O/F 1.0 +/- 1.5 Consistent within 1.5
7	Body Side Aperture Sill to Door	6.0 +/- 1.5 Parallel within 1.5	-
8	Fender to Hood	3.5 +/- 1.2 Parallel within 1.5	Fore 0.0/1.0 +/- 1.5 Aft 0.0/1.5 @ Rear
9	Fender to Door	4.0 +/- 1.0 Parallel within 1.5	Fender O/F 4.0 +/- 1.2 Consistent within 1.5
10	Door to Quarter Panel	4.0 +/- 1.2 Parallel within 1.5	-
11	Fuel Filler Door to Quarter Panel	3.0 +/- 0.8 Parallel within 0.8	Fuel Filler Door U/F 0.5 +/- 1.0 Consistent within 1.5
12	Fascia to Body Side Aperture	Net to 1.0	0.0 +/- 1.0 Parallel within 1.5
13	Tail Lamp to Body Side Aperture	2.0 +/- 1.5 Parallel within 2.0	Tail Lamp U/F 1.0 +/- 2.0 Consistent within 2.0
14	Tail Lamp to Fascia	2.0 +/- 2.0 Parallel within 2.0	-
15	Back Up Lamp to Decklid	2.0 +/- 1.5 Parallel within 2.0	Back Up Lamp O/F 1.0 +/- 2.0 Consistent within 2.0
16	Fascia to Decklid	8.0 +/- 2.0 Parallel within 2.0	-
17	Tail Lamp to Decklid	8.0 +/- 2.0 Parallel within 2.0	Tail Lamp U/F 1.0 +/- 2.0 Consistent within 2.0
18	Decklid to Body Side Aperture	6.0 +/- 1.5 Parallel within 1.5	Decklid O/F 0 to.9 +/- 1.5 Consistent within 1.5 (U/D)
O/F = Over Flush		U/F = Under Flush F/A = Fore/Aft
U/D = Up/Down
