Plate, Presenter: Removal: Removal

Fig 1: Sunvisor
GC0121115Courtesy of CHRYSLER GROUP, LLC
  1. Open the power folding top to the fully opened position so that the header latches are fully disengaged.
  2. Disconnect and isolate the battery negative remote cable.
  3. Remove the left sun visor retaining screws (1).
  4. Lower the left sun visor and disconnect the electrical connector (3).
  5. Remove the left sun visor (2) from the vehicle.
  6. Repeat the removal procedure for the right sun visor.
  7. Remove one retaining screw to both the left and right side sun visor inner clips.

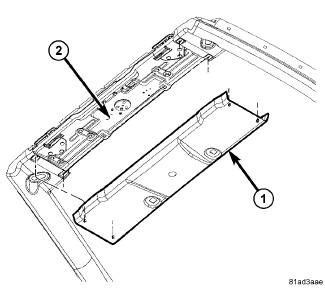

    Fig 2: Windshield Header Lower Trim Panel & Power Folding Top Presenter Plate Assembly
    GC0121116Courtesy of CHRYSLER GROUP, LLC
  8. Using a trim stick or equivalent, remove the windshield header lower trim panel (1) by disengaging the retaining clips from the power folding top presenter plate assembly (2).

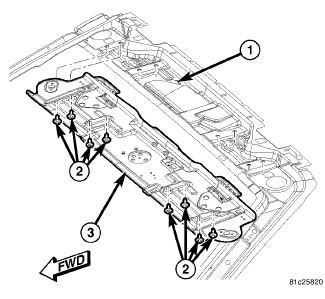

    Fig 3: Identifying Lower Trim Panel & Presenter Plate Assembly
    GC0121117Courtesy of CHRYSLER GROUP, LLC
  9. Remove both the left and right A-pillar trim panels. Refer to PANEL, A-PILLAR TRIM, REMOVAL .
  10. Disconnect the presenter plate electrical connector located on the right A-pillar.
  11. Mark the orientation of the presenter plate (3) to the vehicle header panel (1) to ensure proper alignment during installation.
  12. Remove the presenter plate assembly retaining bolts (2).
  13. Separate the presenter plate (3) from the windshield header (1) and remove from vehicle.
