Bumper, Front Panel: Removal: Removal

Fig 1: Headliners
GC0122848Courtesy of CHRYSLER GROUP, LLC
  1. Remove the headliner(s). Refer to HEADLINER, REMOVAL  or HEADLINER, REMOVAL .
  2. Remove the hinge covers, RHT only.

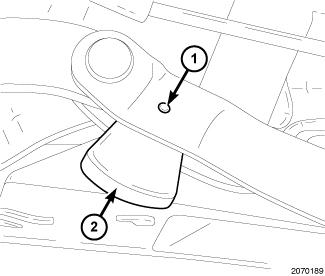

    Fig 2: Retaining Pin & Bumper
    GC0122849Courtesy of CHRYSLER GROUP, LLC
  3. Carefully knock out the retaining pin that secures the bumper.
  4. Remove the bumper from the convertible top.
