Bracket, MOAB: Removal: Removal

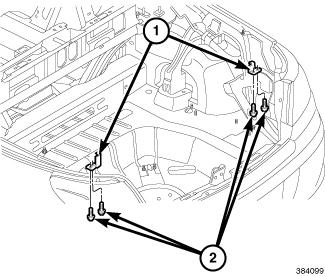

Fig 1: Moab Bracket
GC0122846Courtesy of CHRYSLER GROUP, LLC
  1. Open the decklid conventionally.
  2. Remove the rear and side trunk trim panels. Refer to PANEL, TRUNK TRIM, REMOVAL .
  3. Remove the two bolts (1) and remove the MOAB bracket (2).
