Sensor, Ambient Temperature: Removal: Removal

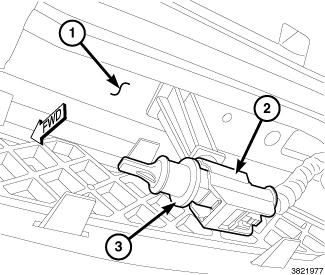

Fig 1: Ambient Temperature Sensor & Front Bumper

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the battery negative cable.
2. Raise and support the vehicle.
3. Remove the front fascia lower close out panel from the vehicle. Refer to FASCIA, FRONT LOWER, CLOSEOUT, REMOVAL .
4. Reach up between the lower edge of the front fascia and the front of the a/c condenser near the right end of the lower air intake opening to access the ambient temperature sensor (3) just below the front bumper (1).
5. Disengage the Connector Position Assurance (CPA) lock of the wire harness connector (2) for the sensor and depress the connector latch tab.
6. Pull the sensor straight out of the connector.
