Cover, Seat Back, Front: Removal: Removal

NOTE:

Convertible only, seat back is not removable from seat frame assembly.

  1. Remove the seat from the vehicle. Refer to SEAT, REMOVAL  - SEATS, FRONT SEDAN or SEAT, FRONT, REMOVAL  - SEATS, FRONT CONVERTIBLE.
  2. Remove the seat side shields. Refer to SIDE SHIELDS, SEAT CUSHION, FRONT, REMOVAL  - SEATS, FRONT SEDAN or SIDE SHIELDS, SEAT CUSHION, FRONT, REMOVAL  - SEATS, FRONT CONVERTIBLE.
    Fig 1: Seat Back Cover J-Clips
    GC0123035Courtesy of CHRYSLER GROUP, LLC
  3. Remove the lower outer shield (2), if equipped.
  4. Disengage seat back cover (1) J-clips and pull upward.

    Unzip the rear zipper.

    Fig 2: Lower Inner Shield Fasteners & Slide Shield
    GC0123036Courtesy of CHRYSLER GROUP, LLC
  5. Remove the lower inner shield fasteners (1) and slide shield (2) down and out of seat back cover.
  6. Remove airbag harness from the seat cushion pan.
    Fig 3: Seat Belt Retractor Mounting Bolt
    GC0123037Courtesy of CHRYSLER GROUP, LLC
  7. Remove the seat belt retractor mounting bolt (3) and remove the retractor from the mounting bracket.
  8. Disengage the seat cushion J-clip (1).
  9. Disengage the seat back cover J-clip (2).

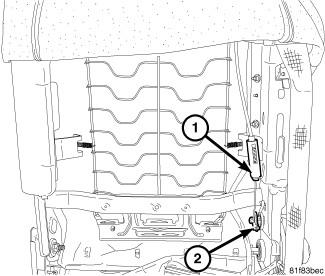

    Fig 4: Rear Entry Release Cable
    GC0123038Courtesy of CHRYSLER GROUP, LLC
  10. Carefully pull the seat back cover up to gain access to the rear entry release cable and seat side airbag mounting fasteners.
  11. Disconnect the rear entry release cable from the release latch (2) and the mounting bracket (1).

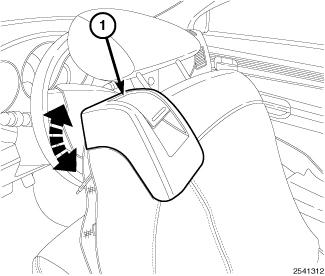

    Fig 5: Mounting Bracket
    GC0123049Courtesy of CHRYSLER GROUP, LLC
  12. Push down on the front of the release handle bezel (1).
  13. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, release the two front bezel tabs (1).
  14. Carefully lift upward on the front of the rear entry handle cover and rotate rearward to release the rear tab.

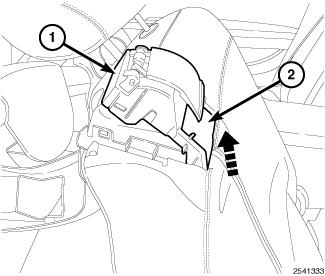

    Fig 6: Handle Bezel
    GC0123050Courtesy of CHRYSLER GROUP, LLC
  15. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, release the front of the handle assembly (1) and separate the rear of the handle assembly (2) from the mounting bracket.

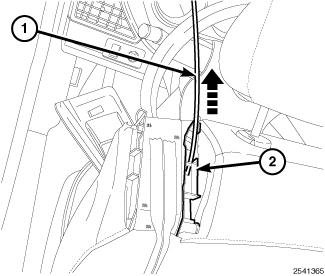

    Fig 7: Cable Assembly & Seat Back Assembly
    GC0123051Courtesy of CHRYSLER GROUP, LLC
  16. While feeding the seat belt through, carefully remove the rear entry handle cover and cable from the seat back.
  17. Remove the shoulder bracket mounting fasteners and bracket from the seat back.
  18. Remove the side airbag fasteners and remove the airbag from the seat cover bag.
    Fig 8: Removing Headrest Sleeves
    GC0138103Courtesy of CHRYSLER GROUP, LLC
  19. Using a small flat bladed tool (4) or equivalent, release the headrest sleeve retaining tabs through the openings (2) in the sleeve support piece.

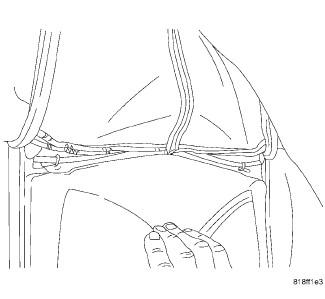

    Fig 9: Hog Rings
    GC0123018Courtesy of CHRYSLER GROUP, LLC
  20. Remove the seat back foam and cover from the seat frame.
  21. Carefully remove the seat back cover from the foam, cutting any hog rings and discard, if required.
