Glass Measurement Locations And Specifications

Fig 1: On-Vehicle Gap Locations

Courtesy of CHRYSLER GROUP, LLC

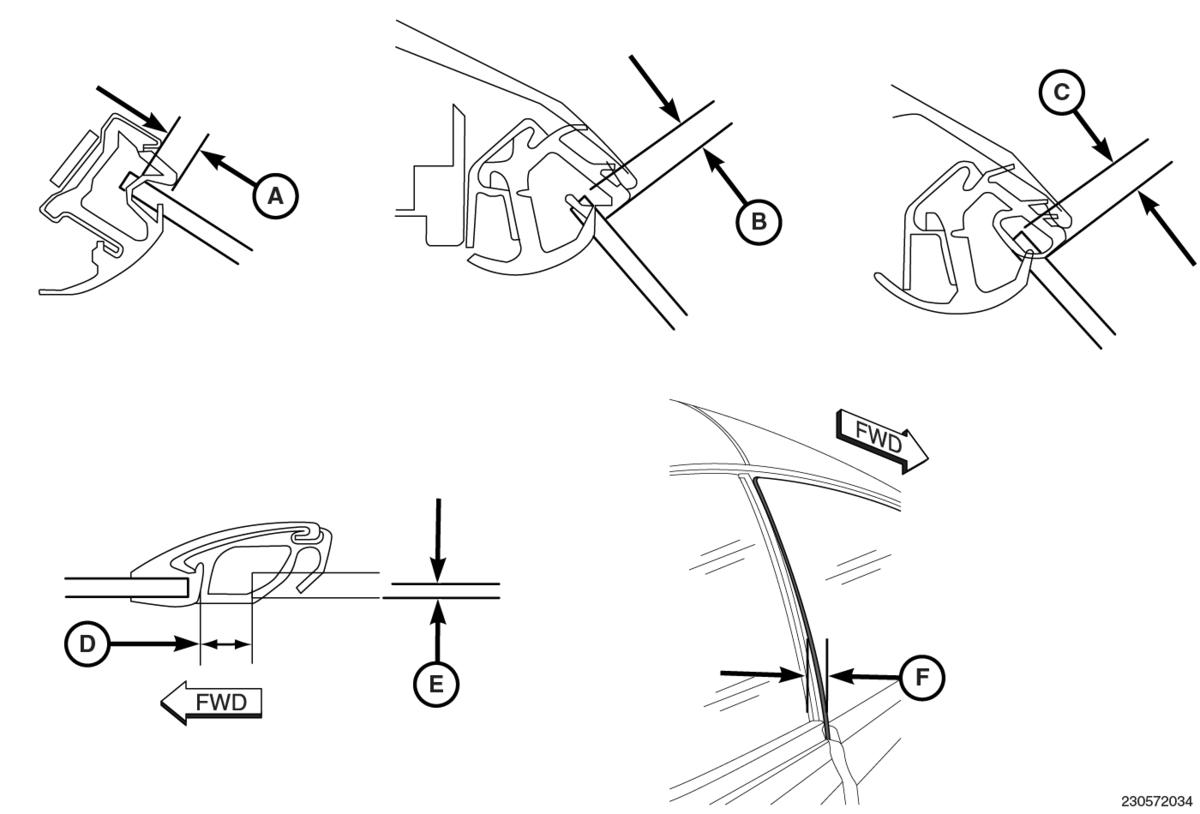

Fig 2: Window Gap Measurements

Courtesy of CHRYSLER GROUP, LLC

GLASS MEASUREMENT LOCATIONS AND SPECIFICATIONS

Section	Measurement (±2 mm)
Section A	8 mm
Section B	9 mm
Section C	9 mm
Section D	10 mm
Section E (door closed)	0 mm
Section F (door unlatched)	3 mm

NOTE:

Refer to GLASS MEASUREMENT LOCATIONS AND SPECIFICATIONS  for on-vehicle gap location.
