Diagnostic Test

TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Cycle the ignition from on to off 3 times.
4. Turn the ignition on.
5. With the scan tool, read DTCs.
  Does the scan tool display: U0019-CAN B BUS CIRCUIT?

  Yes
  - Go To 2
  No
  - The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
CHECK TOTALLY INTEGRATED POWER MODULE DTCs
1. With the scan tool, read Totally Integrated Power Module DTCs
  Does the scan tool display any CAN B BUS DTCs - ACTIVE?

  Yes
  - Perform the appropriate diagnostic procedure. Refer to DIAGNOSIS AND TESTING .
  No
  - Go To 3
CAN B BUS (+) CIRCUIT OPEN

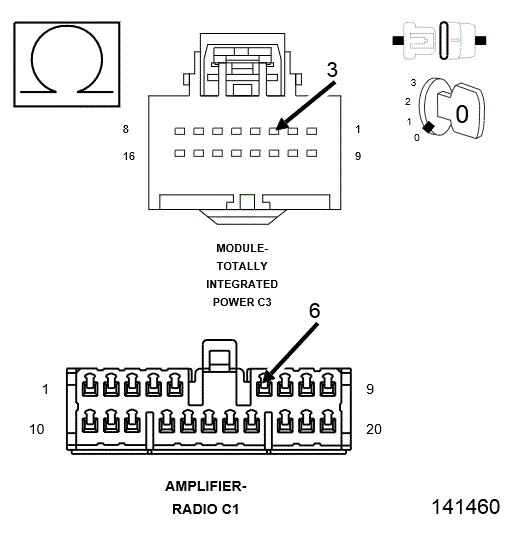

Fig 1: Checking CAN B Bus (+) Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Amplifier C1 harness connector.
3. Disconnect the Totally Integrated Power Module C3 harness connector.
4. Measure the resistance of the (D55) CAN B BUS (+) circuit between the Totally Integrated Power Module C3 harness connector and the Amplifier C1 harness connector.
  Is the resistance below 2.0 Ohms?

  Yes
  - Go To 4
  No
  - Repair the CAN B BUS (+) circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
CAN B BUS (-) CIRCUIT OPEN

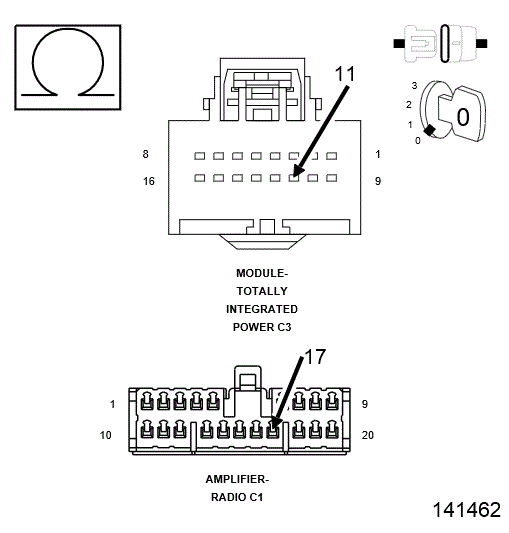

Fig 2: Checking CAN B Bus (--) Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance of the (D54) CAN B BUS (-) circuit between the Totally Integrated Power Module C3 harness connector and the Amplifier C1 harness connector.
  Is the resistance below 2.0 Ohms?

  Yes
  - Replace the Amplifier in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Repair the CAN B BUS (-) circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
