Pressure Control Solenoid - Removal

REMOVAL

1. Remove the engine cover.

2. Disconnect and isolate the battery negative cable.

3. Remove the air cleaner body

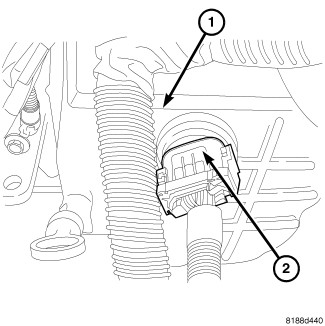

4. Remove the solenoid pack connector (2) at valve body oil pan (1).

5. Disconnect oil cooler lines from transaxle.

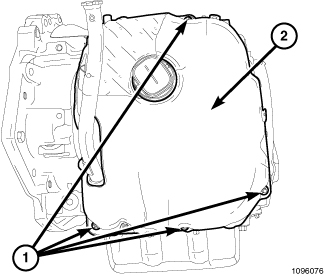

6. Remove the fasteners (1) and the Front Sound Damper Cover (2).

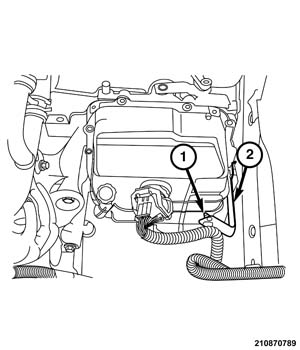

7. Remove clip (1) from solenoid pack wire harness bracket, and remove the bracket (2).

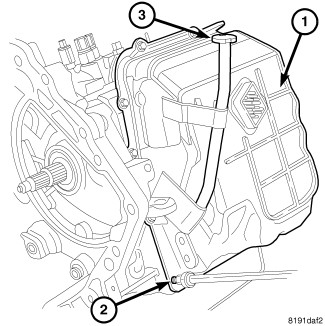

8. Remove the top valve body oil pan (1) bolts.

9. Raise the vehicle on a hoist.

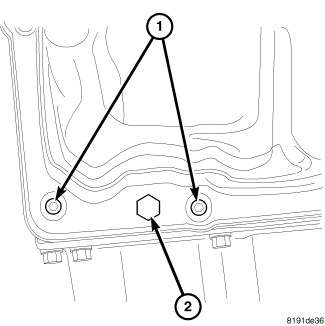

10. Remove the lower valve body oil pan bolts (1) and drain transmission fluid.

11. Remove the valve body oil pan.

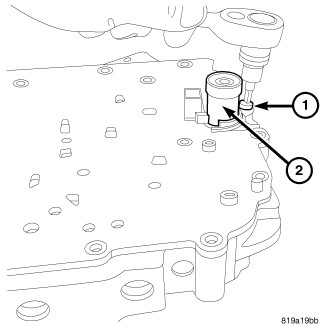

12. Remove the bolt (1) at the pressure control solenoid (2).

13. Remove the pressure control sensor (2) from the valve body.
