A/C Pressure Transducer - Removal

REMOVAL

NOTE:
It is not necessary to discharge the refrigerant system to replace the A/C pressure transducer.





NOTE:

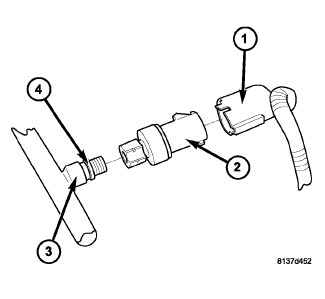

Typical A/C pressure transducer shown.

1. Disconnect and isolate the negative battery cable.

2. Disconnect the wire harness connector (1) from the A/C pressure transducer (2) on the A/C discharge line (3).

3. Remove the A/C pressure transducer from the A/C discharge line and remove and discard the O-ring seal (4).
