Ignition Coil - Installation

2.4L

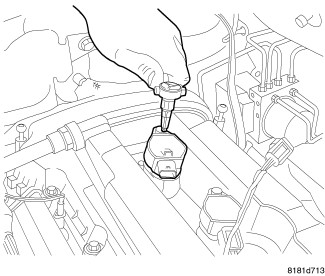

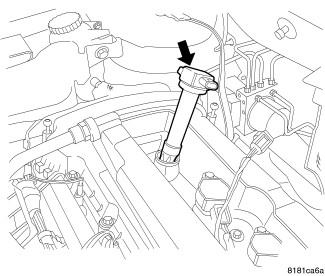

1. Install the ignition coil.





2. Install the bolt and tighten to 9 Nm (79.5 in. lbs.).

3. Connect and lock the electrical connectors.

4. Install the negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
