Instrument Panel

INSTRUMENT PANEL

NOTE:
Take the proper precautions to protect the instrument panel cover and the center bezel from cosmetic damage while performing these procedures.

NOTE:
Dodge model shown. Chrysler model similar.





1. If servicing a center air outlet (1 and 3):

- Position the outlet to the center bezel (2) and engage the four plastic retaining clips (4 and 5).

- Install the center bezel.

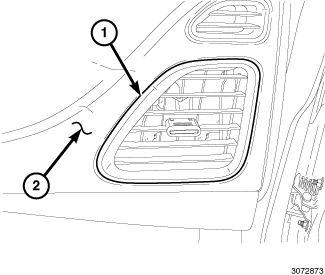

2. If servicing an outboard air outlet (1), position the outlet to the instrument panel cover (2) and engage the five metal retaining clips.
