Accessory Drive Belt Tensioner - Removal







2.4L










1. Raise vehicle on hoist.

2. Remove belt splash shield.

3. Remove accessory drive belt Serpentine Accessory Drive Belt - Removal.

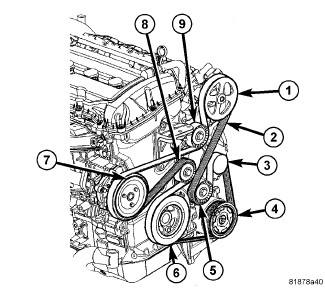

4. Remove accessory drive belt tensioner mounting bolt. Remove accessory drive belt tensioner (8).
