Shifter Bezel - Installation
AUTOMATIC

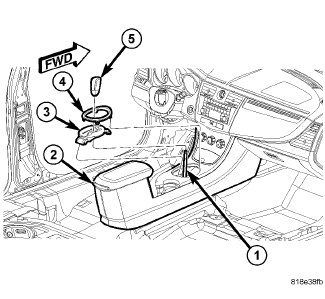

1. Insert bezel (4) locator to shifter pod.
2. Apply hand pressure until clips are seated.
3. Snap shifter knob (5) onto shifter shaft.
4. Pull up on knob (5) to verify seated correctly.
AUTOMATIC
1. Insert bezel (4) locator to shifter pod.
2. Apply hand pressure until clips are seated.
3. Snap shifter knob (5) onto shifter shaft.
4. Pull up on knob (5) to verify seated correctly.
