B-Pillar Trim Panel - Removal

REMOVAL

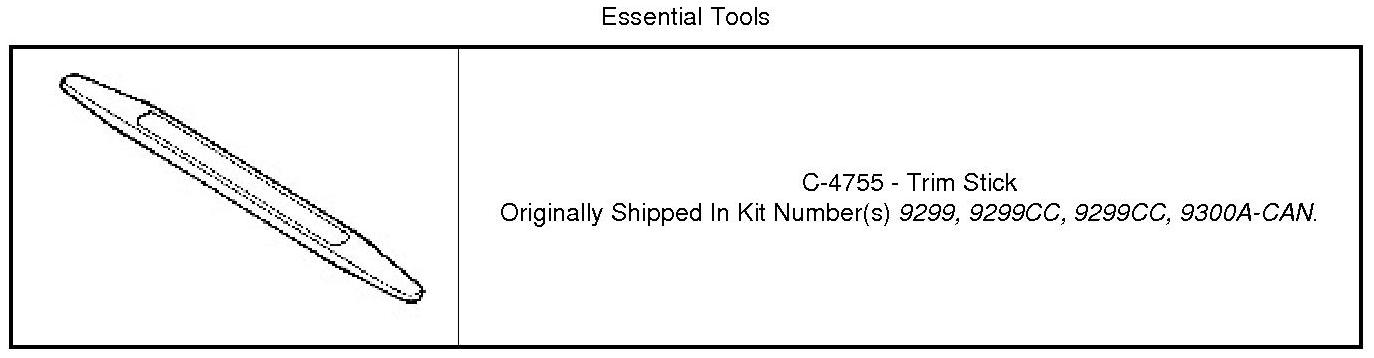

Special Tools:











1. Remove sill trim panel. Scuff Plate - Removal

2. Remove seat belt anchor (3). Seat Belt Retractor - Removal

3. Using trim stick (C-4755), remove SRS airbag cover located at top of B-pillar.

4. Move seat belt adjuster all the way down exposing the B-pillar screw. Remove B-pillar screw.

5. Using trim stick (C-4755), pry up B-pillar and route seat belt through B-pillar trim. Remove B-pillar bottom (2) first and remove trim from B-pillar.
