A-Pillar Trim Panel - Removal

REMOVAL

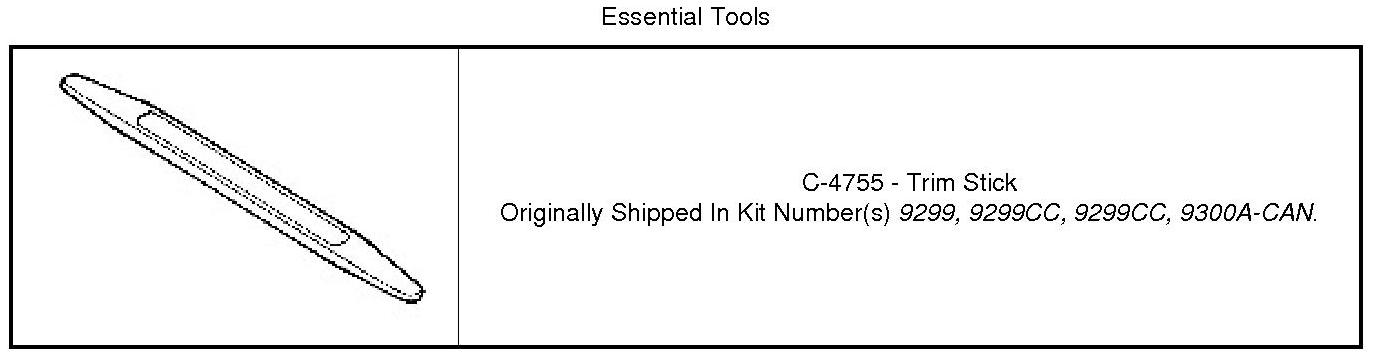

Special Tools:











1. Using trim stick (C-4755), disengage clips attaching A-pillar trim to A-pillar.

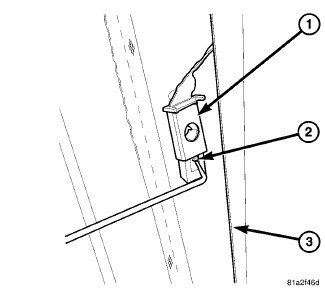

2. Using a screwdriver or equivalent, press downward disengaging tether clip (2) and slide from housing (1).





3. Remove A-pillar trim from vehicle.
