Quarter Trim Panel Flipper Door - Removal

FLIPPER DOOR






1. Remove the quarter trim panel. Quarter Trim Panel - Removal.

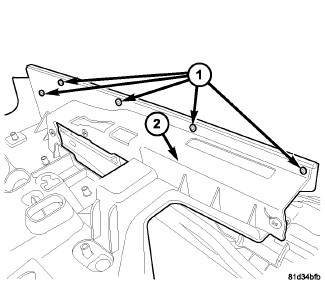

2. Inspect the welds (1) that attach the inner reinforcement (2) to the quarter trim at the upper outboard edge. If any of the welds are broken, replace the quarter trim panel.





3. Remove the 4 screws that attach the flipper door assembly to the inner reinforcement.
