Lower Quarter Trim Panel - Removal

LOWER

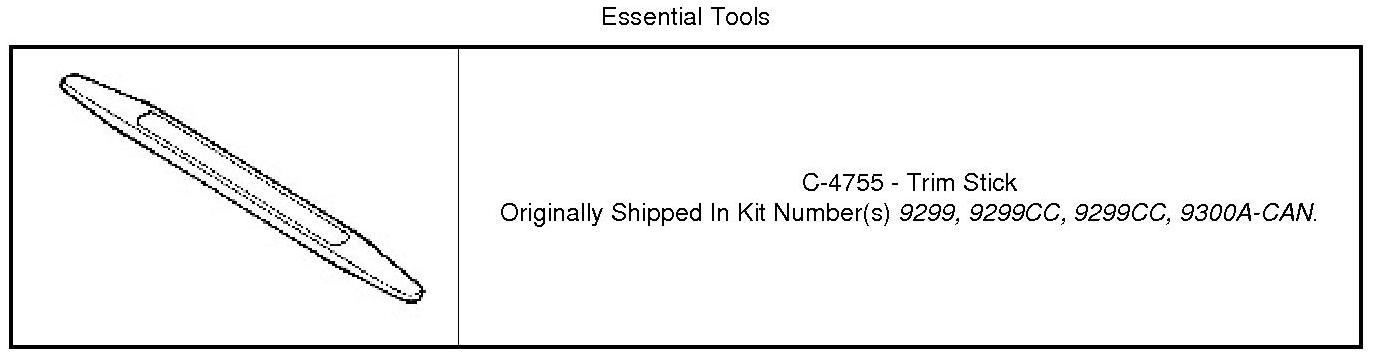

Special Tools:











1. Remove door sill trim panel. Scuff Plate - Removal

2. Fold rear seats down.

3. Remove upper C-pillar trim. C-Pillar Trim Panel - Removal

4. Using trim stick (C-4755) or equivalent, disengage the clips (2) from clip locations (1) attaching the lower quarter trim to the body.

5. Remove lower quarter trim from vehicle.
