Lower Quarter Trim Panel - Installation







LOWER

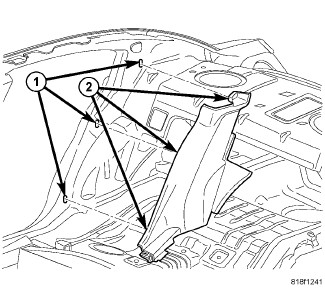

1. Place lower quarter trim into position aligning quarter trim with clip locations (1).

2. Engage the clips attaching the lower quarter trim (2) to the body.

3. Install upper C-pillar trim. C-Pillar Trim Panel - Removal

4. Install door sill trim panel.
