Header Panel - Installation
>>
Top-Header
Top-Header

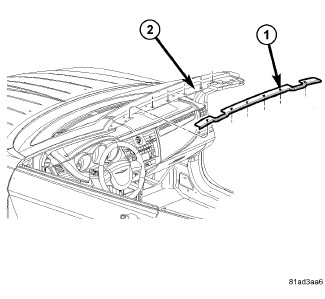

TOP-HEADER
1.
Position the windshield header trim - top in place and install
2.
Install the six screws.
