Cowl Trim Panel - Removal

REMOVAL

Special Tools:











1. Remove door sill trim panel. Scuff Plate - Removal

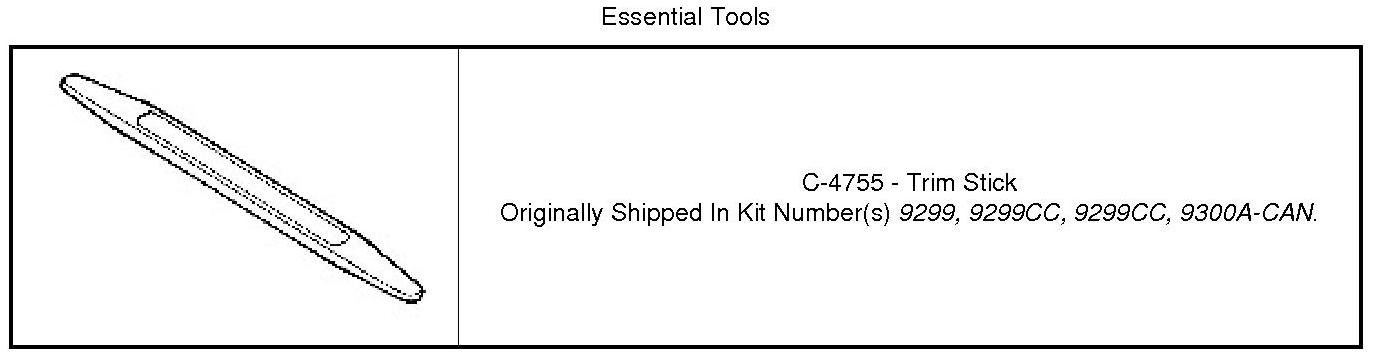

2. Using trim stick (C-4755), disengage cowl trim panel (1) clips from the corresponding locations in the sheet metal (2).

3. Remove cowl trim panel (1) from vehicle.
