Cowl Trim Panel - Installation







INSTALLATION

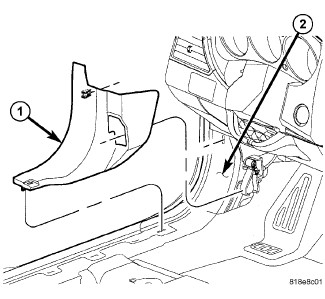

1. Position cowl trim panel to vehicle.

2. Hand press cowl trim panel to corresponding holes in sheet metal (2).

3. Install door sill trim panel. Scuff Plate - Installation
