Sedan







SEDAN

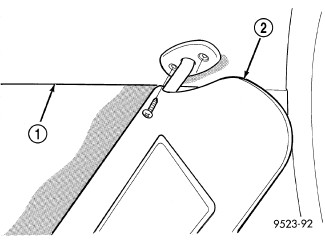

1. Disengage the sun visor (2) from the sun visor support.

2. Remove the two screws that secure the sun visor to the roof panel and remove the sun visor from the headliner (1).

3. If equipped, disconnect the illuminated vanity mirror wire harness connector.
