Scuff Plate - Installation

INSTALLATION

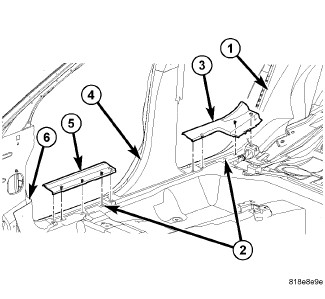

1. Place door sill trim panel (3) and (5) into position.

2. Align locator tab to the locator slot in door sill (2).

3. Pushing downward on sill trim panel to engage tabs and attaching clips to the door sill.
