Retractable Hard Top - Front Panel

FRONT PANEL

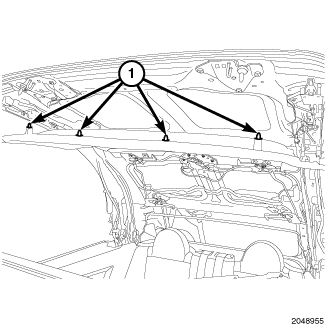

1. Position the headliner in front panel and align holes. (1) Firmly snap into place.

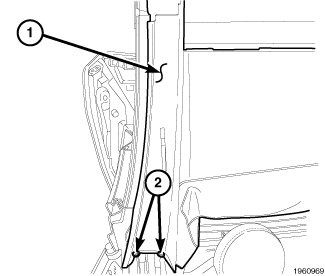

2. Install both left and right side center rail trim (1).

3. Install push pins (2) to the right and left center rail trim.

4. Close top and check for clearance of headliner to mid panel.
