Instrument Cluster Switch Pod - Operation







OPERATION





Refer to each individual switch information and section for operation and any further information.

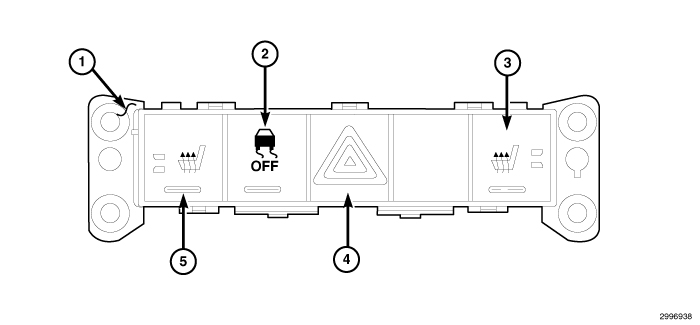

- Heated Seat Switches (3 and 5) - Heated Seat Switch - Operation

- Hazard Warning Switch (4) - Hazard Warning Switch - Operation

- Electronic Stability Control (ESC) (2) - Brakes - Operation
