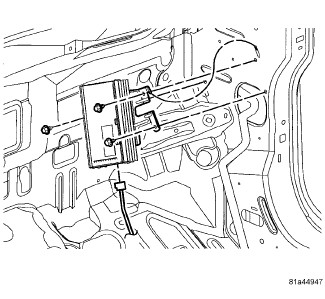

Amplifier - Installation







INSTALLATION






1. Connect wire harness connector to amplifier.

2. Install amplifier.

3. Install the amplifier mounting fasteners.

4. Install the cowl trim panel. Cowl Trim Panel - Installation.

5. Connect battery negative cable.
