Sensor, Axle: Removal: Rear
Courtesy of CHRYSLER GROUP, LLC
- Disconnect and isolate the battery negative cable.
- Raise and support the vehicle.

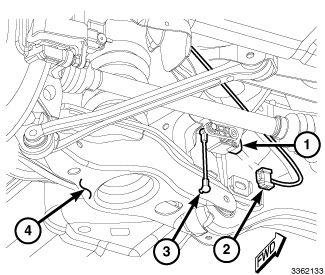

- Locate the rear axle sensor (1) on a bracket between the rear suspension cradle and the rear suspension lower control arm (4).
- Disconnect the underbody wire harness connector (2) from the rear axle sensor connector receptacle.
- Carefully unsnap the lower end of the rear axle sensor link from the ball stud (3) on the forward-facing side of the rear suspension lower control arm.
- Remove the screw that secures the sensor to the bracket on the rear suspension cradle.
- Remove the rear axle sensor, bracket and link from the vehicle as a unit.
