Cluster Assembly

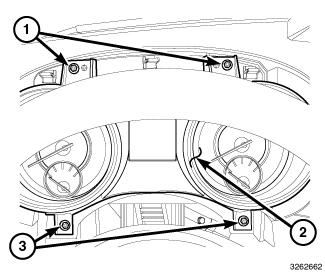

Fig 1: Upper/Lower, Fasteners & Cluster

Courtesy of CHRYSLER GROUP, LLC

NOTE:

If the cluster has been replaced, the replacement cluster should be programmed with the correct mileage. Verify the correct mileage via WiTech/Scan Tool.

Position cluster into instrument panel opening.
Connect the cluster electrical connector.
Tilt the cluster forward, install and tighten the upper and lower fasteners (1 and 3).

Fig 2: Instrument Cluster (IC)
Courtesy of CHRYSLER GROUP, LLC
Position the steering column opening seal (4), and press into place.
Install the steering column cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
Install the two small instrument panel trim panels (3).
Position the upper hood (2) on the instrument panel, and press into place engaging the clips that secure the hood.
Connect the battery negative cable.
