Cover, Seat Cushion, Second Row: Removal: Removal

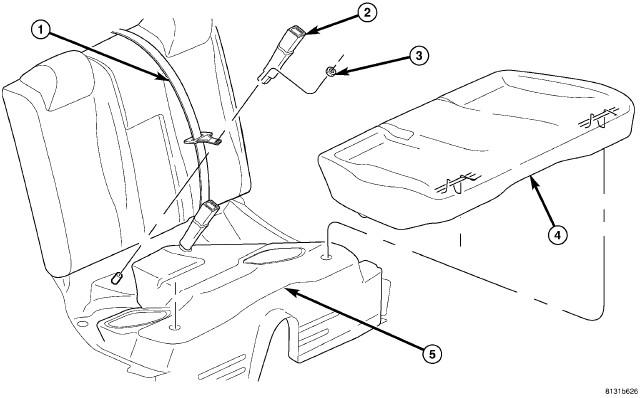

Fig 1: Rear Seat Cushion & Rear Seat Belt Rib Buckle

Courtesy of CHRYSLER GROUP, LLC

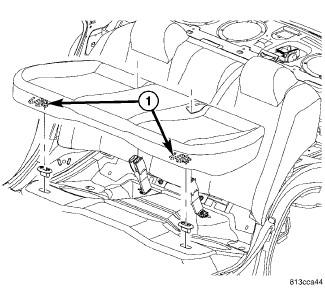

Fig 2: Rear Seat Cushion

Courtesy of CHRYSLER GROUP, LLC

1. Pull upward at forward edge of cushion each retainer loop of the rear seat cushion to disengage retainer loops from cups in floor.
2. Remove rear seat cushion (4) from vehicle.

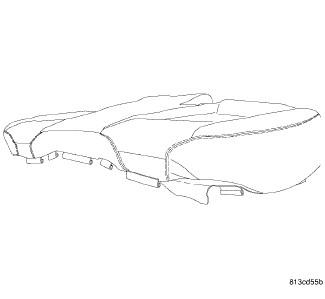

   Fig 3: Connect J-Straps

   Courtesy of CHRYSLER GROUP, LLC
3. Disengage the J-straps attaching seat cover to the cushion.

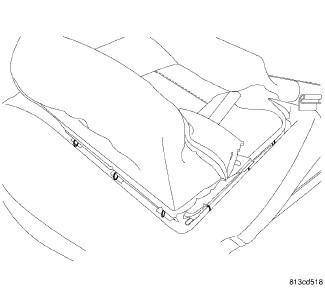

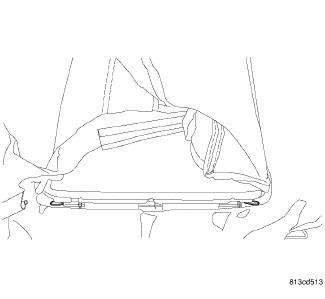

   Fig 4: Move Seat Cover To Access Hog Rings

   Courtesy of CHRYSLER GROUP, LLC
4. Fold rear of the seat cover forward to uncover hog rings.

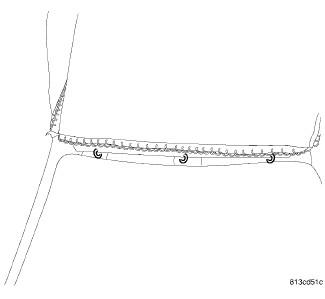

   Fig 5: Rear Seat Cushion Hog Rings (4)

   Courtesy of CHRYSLER GROUP, LLC
5. Start on the rear side of the cushion and cut hog rings.

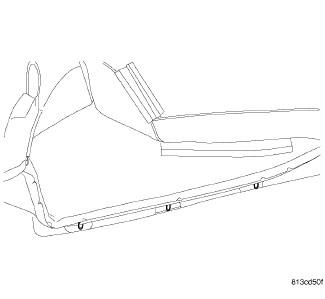

   Fig 6: Rear Seat Cushion Hog Rings (3)

   Courtesy of CHRYSLER GROUP, LLC
6. Cut the hog rings on the outer side of the cushion.
   Fig 7: Rear Seat Cushion Hog Rings (2)

   Courtesy of CHRYSLER GROUP, LLC
7. Work around the outer edges and cut the hog rings.

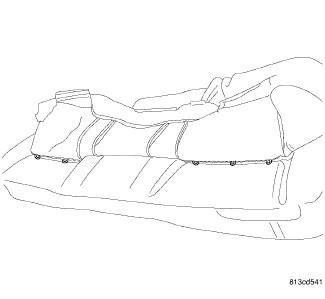

   Fig 8: Rear Seat Cushion Hog Rings (1)

   Courtesy of CHRYSLER GROUP, LLC
8. Fold cover up to access the inner hog rings and cut them.
9. Repeat operation on the other side of cushion.
10. Remove seat cushion cover from seat cushion.

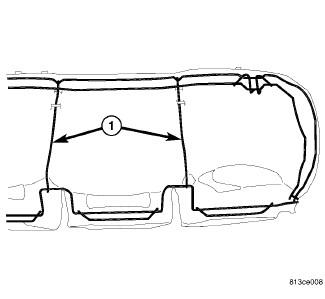

    Fig 9: Cushion Support

    Courtesy of CHRYSLER GROUP, LLC
11. If replacing cushion, remove the cushion support by cutting the hog rings attaching it to the foam and remove.
