Sensor, Oil Pressure: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL .
  3. Remove the upper generator mounting bolt.
  4. Raise and support the vehicle.
    Fig 1: Lower Splash Shield & Fasteners
    GC0095584Courtesy of CHRYSLER GROUP, LLC
  5. Remove the belly pan retainers (1) and remove the belly pan.

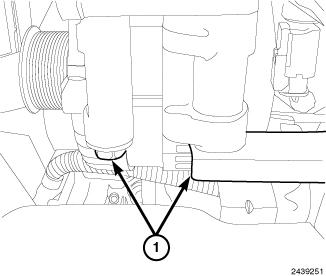

    Fig 2: Lower Generator Retaining Bolts
    GC0095585Courtesy of CHRYSLER GROUP, LLC
  6. Remove the lower generator retaining bolts (1).
  7. Lower the vehicle.
  8. Position the generator aside to gain access to the oil pressure sensor.
    Fig 3: Oil Pressure Sensor Electrical Connector
    GC0095586Courtesy of CHRYSLER GROUP, LLC
  9. Disconnect the oil pressure sensor electrical connector (1).
    Fig 4: Oil Pressure Sensor
    GC0095587Courtesy of CHRYSLER GROUP, LLC
  10. Remove the oil pressure sensor (1).
