RWD Upper

WARNING: This page is about a different variant/trim than selected.

Fig 1: Engine Cover

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Lift the engine cover retaining grommets off the ball studs and remove the engine cover (1).

Fig 2: Inlet Air Temperature (IAT) Sensor Electrical Connector, Air Inlet Hose Assembly & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Disconnect the electrical connector (1) from the Inlet Air Temperature (IAT) sensor.
Loosen the clamp (2) at the throttle body.
Loosen the clamp (3) at the air cleaner housing.
Lift the air inlet hose assembly retaining grommet off the ball stud (4).
Remove the air inlet hose assembly (5).

Fig 3: Heater Core Inlet Tube, Oil Level Indicator & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove two bolts (3) from the heater core inlet tube (4) and reposition the tube.
Remove the bolt (1) and remove the oil level indicator (2).

Fig 4: Lower Splash Shield & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the belly pan retainers (1) and remove the belly pan.
Drain the engine oil. Refer to Engine/Lubrication/OIL - Standard Procedure .

Fig 5: Bolts, Studs, Nuts & Lower Oil Pan
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The lower oil pan must be removed to access all of the upper oil pan retaining bolts.
Remove the lower oil pan (1). Refer to PAN, OIL, REMOVAL .

Fig 6: Steering Coupling
Courtesy of CHRYSLER GROUP, LLC
Remove the lower intermediate coupling pinch bolt (1) at the steering gear (3). Separate the lower intermediate shaft (2) from the steering gear shaft (3).

Fig 7: Gear Mounting Bolts & Steering Gear
Courtesy of CHRYSLER GROUP, LLC
Remove the steering gear mounting bolts (1) and reposition the steering gear (2).

Fig 8: Bolt & Transmission Cooling Lines
Courtesy of CHRYSLER GROUP, LLC
Remove the bolt (1) and reposition the transmission cooling lines (2).

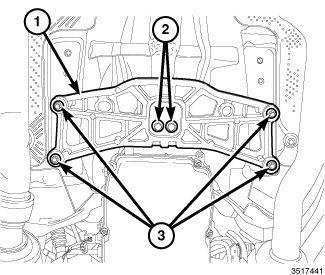

Fig 9: Rear Engine Mount Isolator Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the two bolts (2) from the rear engine mount isolator.
Using a suitable jack stand and a block of wood positioned under the transmission oil pan, raise the rear of the engine.

Fig 10: Transmission-To-Engine Oil Pan Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the four transmission to the engine oil pan bolts (1).

Fig 11: Rubber Plugs
Courtesy of CHRYSLER GROUP, LLC
Remove the two rubber plugs (1) covering the rear oil seal retainer flange bolts.

Fig 12: Rear Oil Seal Retainer Flange Bolts
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Illustration shown with transmission removed for clarity.

CAUTION:
There are two hidden M6 bolts that must be removed from the rear of the upper oil pan flange. If these bolts are not removed, the rear oil seal retainer flange will be severely damaged.
Remove two M6 bolts (1) from the rear oil seal retainer flange.

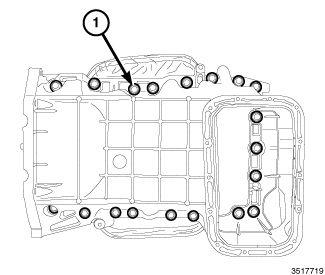

Fig 13: Oil Pan Mounting Bolts (M8)
Courtesy of CHRYSLER GROUP, LLC
Remove nineteen M8 oil pan mounting bolts (1).

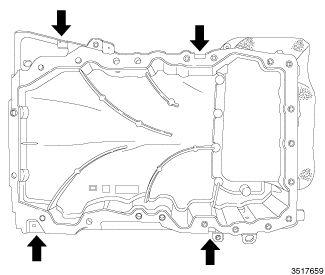

Fig 14: Locating Pry Points To Remove Oil Pan
Courtesy of CHRYSLER GROUP, LLC
Using the four indicated pry points, carefully remove the upper oil pan.
Remove all residual sealant from the upper and lower oil pans, timing chain cover, rear seal retainer and engine block mating surfaces. Refer to Engine/Lubrication/PAN, Oil - Cleaning .
