RWD Upper

WARNING: This page is about a different variant/trim than selected.

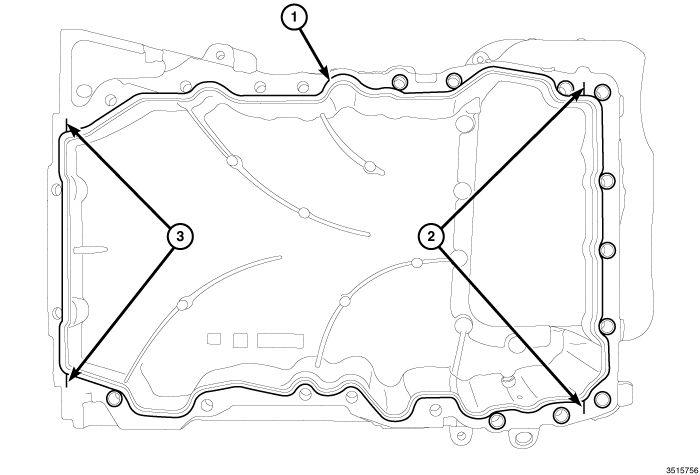

Fig 1: Locating Sealant On Upper Oil Pan
GC0144912Courtesy of CHRYSLER GROUP, LLC
CAUTION:

Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Threebond Engine RTV Sealant may result in engine fluid leakage.

CAUTION:

Following the application of Mopar® Threebond Engine RTV Sealant to the gasket surfaces, the components must be assembled within 20 minutes and the attaching fasteners must be tightened to specification within 45 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.

  1. Clean the upper and lower oil pans, timing chain cover, rear seal retainer and engine block mating surfaces with isopropyl alcohol in preparation for sealant application.
  2. Apply a 2 to 3 mm wide bead of Mopar® Threebond Engine RTV Sealant to the upper oil pan as shown in illustration, in the following locations:
    • Oil pan to engine block flange (1)
    • Two timing cover to engine block T-joints (2)
    • Two rear seal retainer to engine block T-joints (3)
    Fig 2: Oil Pan Mounting Bolts (M8)
    GC0144917Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    Make sure that the rear face of the oil pan is flush to the transmission bell housing before tightening any of the oil pan mounting bolts. A gap between the oil pan and the transmission could crack the oil pan or transmission casting.

  3. Install the oil pan to the engine block making sure the oil pan is flush to the transmission bell housing. Secure the oil pan to the engine block with nineteen M8 oil pan mounting bolts (1) finger tight.
    Fig 3: Transmission-To-Engine Oil Pan Bolts
    GC0144171Courtesy of CHRYSLER GROUP, LLC
  4. Install the four transmission to the engine oil pan bolts (1) and tighten to 55 N.m (41 ft. lbs.).
    Fig 4: Oil Pan Mounting Bolts (M8)
    GC0144917Courtesy of CHRYSLER GROUP, LLC
  5. Tighten the nineteen previously installed M8 oil pan mounting bolts (1) to 25 N.m (18 ft. lbs.).
    Fig 5: Rear Oil Seal Retainer Flange Bolts
    GC0144907Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Illustration shown with transmission removed for clarity.

  6. Install the two M6 bolts (1) to the rear oil seal retainer flange and tighten to 12 N.m (9 ft. lbs.).
    Fig 6: Rubber Plugs
    GC0144915Courtesy of CHRYSLER GROUP, LLC
  7. Install the two rubber plugs (1) covering the rear oil seal retainer flange bolts.
    Fig 7: Rear Engine Mount Isolator Bolts
    GC0144914Courtesy of CHRYSLER GROUP, LLC
  8. Lower the rear of the engine and install the two bolts (2) to the rear engine mount isolator. Tighten the bolts to 65 N.m (48 ft. lbs.).
    Fig 8: Bolt & Transmission Cooling Lines
    GC0144918Courtesy of CHRYSLER GROUP, LLC
  9. Install the transmission cooling lines (2) and tighten the bolt (1) to 12 N.m (106 in. lbs.).
    Fig 9: Gear Mounting Bolts & Steering Gear
    GC0080538Courtesy of CHRYSLER GROUP, LLC
  10. Lift the steering gear (2) into the mounted position and install the steering gear mounting bolts (1). Tighten the bolts to 95 N.m (70 ft. lbs.).
    Fig 10: Steering Coupling
    GC0080527Courtesy of CHRYSLER GROUP, LLC
  11. Align the lower intermediate shaft (2) with the input shaft (3) and install the steering coupling. Install a NEW pinch bolt (1) and tighten to 45 N.m (33 ft. lbs.).
    Fig 11: Bolts, Studs, Nuts & Lower Oil Pan
    GC0144908Courtesy of CHRYSLER GROUP, LLC
  12. Install the lower oil pan. Refer to PAN, OIL, INSTALLATION .
    Fig 12: Lower Splash Shield & Fasteners
    GC0095584Courtesy of CHRYSLER GROUP, LLC
  13. Position the belly pan and install the retainers (1).
  14. Lower the vehicle.
    Fig 13: Heater Core Inlet Tube, Oil Level Indicator & Bolts
    GC0144913Courtesy of CHRYSLER GROUP, LLC
  15. Install the oil level indicator (2) with bolt (1) tightened to 12 N.m (106 in. lbs.).
  16. Position the heater core inlet tube (4) and install two bolts (3) tightened to 12 N.m (106 in. lbs.).
  17. Fill the crankcase with the specified type and amount of engine oil. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
    Fig 14: Inlet Air Temperature (IAT) Sensor Electrical Connector, Air Inlet Hose Assembly & Fasteners
    GC0144029Courtesy of CHRYSLER GROUP, LLC
  18. Position the air inlet hose assembly (5) onto the throttle body and the air cleaner housing.
  19. Secure the air inlet hose assembly retaining grommet onto the ball stud (4).
  20. Tighten the clamp at the air cleaner housing (3) to 5 N.m (44 in. lbs.).
  21. Tighten the clamp (2) at the throttle body to 5 N.m (44 in. lbs.).
  22. Connect the Inlet Air Temperature (IAT) sensor electrical connector (1).
    Fig 15: Engine Cover
    GC0144028Courtesy of CHRYSLER GROUP, LLC
  23. Position the engine cover (1) and secure the retaining grommets onto the ball studs.
  24. Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
  25. Start and run the engine until it reaches normal operating temperature and check for leaks.
