Insulator, Engine Mount, Rear: Removal: Removal: AWD

WARNING: This page is about a different variant/trim than selected.

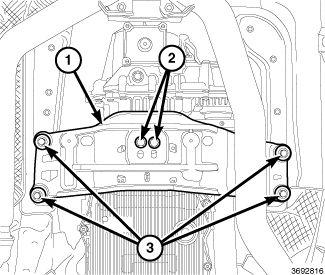

Fig 1: Crossmember & Bolts (AWD)

Courtesy of CHRYSLER GROUP, LLC

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the two bolts (2) from the rear engine mount isolator.
Using a suitable jack stand and a block of wood positioned under the transfer case, raise the transmission until the weight is off of the isolator (approximately 5 mm).
Remove four bolts (3) and the crossmember (1).

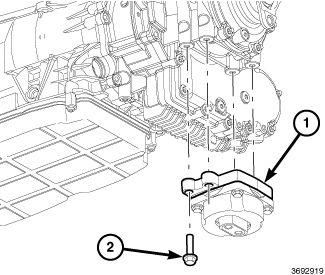

Fig 2: Rear Engine Mount Isolator & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove four bolts (2) and the rear engine mount isolator (1).

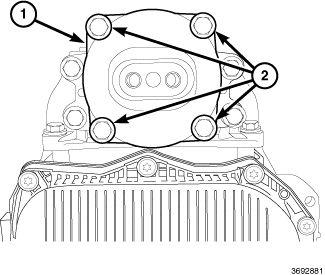

Fig 3: Rear Engine Mount Bracket & Bolts
Courtesy of CHRYSLER GROUP, LLC
If required, remove four bolts (2) and the rear engine mount bracket (1).
