Fig 1: Spring Seat, Valve Guide Seal & Garter Spring

Courtesy of CHRYSLER GROUP, LLC

If removed, install the spring seat (3) and valve guide seal (1) over the valve guide. Refer to SEAL(S), VALVE GUIDE, INSTALLATION .
NOTE:
Ensure that the garter spring (2) is intact around the top of the valve guide seal (1). Number 5 cylinder exhaust valve guide seal shown in illustration, all other valves similar.

Fig 2: Valve Spring & Valve Spring Retainer
Courtesy of CHRYSLER GROUP, LLC

NOTE:
If the valve springs are being reused, reassemble them into their original locations. Number 5 cylinder exhaust valve spring shown in illustration, all other valves similar.
Install the valve spring (2) and valve spring retainer (1).

Fig 3: Shop Air Supply & Valve Spring Compressor
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Number 4 cylinder intake valve spring compression shown in illustration, all other valves similar.
Using Valve Spring Compressor Adapter (special tool #10224, Adapter, Valve Spring) (3) with Valve Spring Compressor (special tool #MD998772A, Compressor, Valve Spring) (2), compress the valve spring (4) only enough to install the valve retaining locks (5).
Relieve the air pressure and remove the spark plug adapter.
Install the spark plug and tighten to 17.5 N.m (13 ft. lbs.). Refer to SPARK PLUG, INSTALLATION .

Fig 4: Locating Rocker Arms
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The LH cylinder head rocker arms are shown in illustration, the RH cylinder head rocker arms are similar. If the rocker arms are being reused, reassemble them into their original locations.
Install the rocker arm(s) (1). Refer to ROCKER ARM, VALVE, INSTALLATION .
Install the camshaft(s), phasers, cylinder head cover(s) and upper intake manifold. Refer to CAMSHAFT, ENGINE, INSTALLATION .

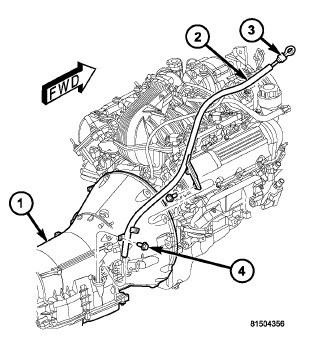

Fig 5: Transmission Fluid Level Indicator Tube Assembly
Courtesy of CHRYSLER GROUP, LLC
If removed, install the transmission fluid level indicator tube (2). Refer to SEAL, FILL TUBE, INSTALLATION , SEAL, OUTPUT SHAFT, INSTALLATION and SEAL, TORQUE CONVERTER HUB, INSTALLATION .

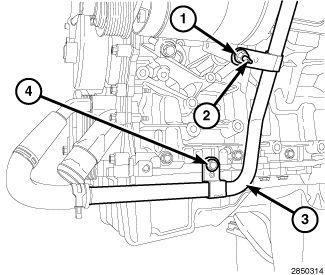

Fig 6: Heater Core Return Tube, Nut & Bolt
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Power steering pump not shown in illustration.
If removed, install the nut (1) and bolt (4) to the support brackets of the heater core return tube (3). Tighten the fasteners to 12 N.m (106 in. lbs.).

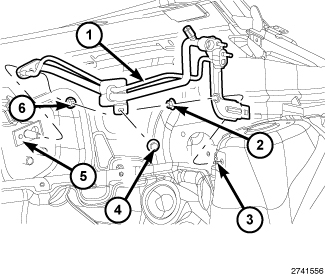

Fig 7: A/C Suction & Liquid Line Assembly
Courtesy of CHRYSLER GROUP, LLC
If removed, install the A/C suction and liquid line assembly (1). Refer to LINE, A/C SUCTION, INSTALLATION .
Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
