Cylinder Head: Installation: Left

WARNING: This page is about a different variant/trim than selected.
Fig 1: Magnetic Timing Wheels
GC0144190Courtesy of CHRYSLER GROUP, LLC
CAUTION:

The magnetic timing wheels (1) must not come in contact with magnets (pickup tools, trays, etc.) or any other strong magnetic field. This will destroy the timing wheels ability to correctly relay camshaft position to the camshaft position sensor.

Fig 2: ECT Sensor, Ignition Coil Capacitor, Engine Wire Harness Retainer Bracket & Bolts
GC0144448Courtesy of CHRYSLER GROUP, LLC
  1. If removed, install the Engine Coolant Temperature (ECT) sensor (4) and tighten to 11 N.m (97 in. lbs.).
  2. If removed, install the ignition coil capacitor (1) with a M6 bolt (2) and tightened to 10 N.m (89 in. lbs.).
  3. If removed, install the engine wire harness retainer bracket (5) with a T30 bolt (3) and tightened to 12 N.m (106 in. lbs.).
    Fig 3: Checking Cylinder Head Bolts For Stretching (Necking)
    GC0104468Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    The cylinder head bolts are tightened using a torque plus angle procedure. The bolts must be examined BEFORE reuse. If the threads are necked down the bolts must be replaced.

    NOTE:

    Typical cylinder head bolt shown in illustration.

  4. Check cylinder head bolts for necking by holding a scale or straight edge against the threads. If all the threads do not contact the scale (2) the bolt must be replaced.
    Fig 4: Head Gasket & Locating Dowels
    GC0144308Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Right head gasket shown in illustration, left head gasket similar.

    CAUTION:

    When cleaning cylinder head and cylinder block surfaces, DO NOT use a metal scraper because the surfaces could be cut or ground. Use ONLY a wooden or plastic scraper.

  5. Clean and prepare the gasket sealing surfaces of the cylinder head and block. Refer to Engine - Standard Procedure .
    CAUTION:

    Non-compressible debris such as oil, coolant or RTV sealants that are not removed from bolt holes can cause the aluminum casting to crack when tightening the bolts.

  6. Clean out the cylinder head bolt holes in the engine block.
    WARNING:

    The multi-layered steel head gaskets have very sharp edges that could cause personal injury if not handled carefully.

    CAUTION:

    The cylinder head gaskets are not interchangeable between the left and right cylinder heads and are clearly marked (3) with "R" for right and "L" for left.

  7. Position the new cylinder head gasket (1) onto the locating dowels (2).
    Fig 5: Cylinder Head Retaining Bolt Tightening Sequence - Left
    GC0144166Courtesy of CHRYSLER GROUP, LLC
  8. Position the cylinder head onto the cylinder block. Make sure the cylinder head seats fully over the locating dowels.
    NOTE:

    Do not apply any additional oil to the bolt threads.

  9. Install the eight cylinder head bolts finger tight.
  10. Tighten the cylinder head bolts in the sequence shown in illustration, following this 9 step torque plus angle method. Tighten according to the following torque values:
    • Step 1: All to 30 N.m (22 ft. lbs.)
    • Step 2: All to 45 N.m (33 ft. lbs.)
    • Step 3: All + 75° Turn Do not use a torque wrench for this step.
    • Step 4: All + 50° Turn Do not use a torque wrench for this step.
    • Step 5: Loosen all fasteners in reverse of sequence shown in illustration
    • Step 6: All to 30 N.m (22 ft. lbs.)
    • Step 7: All to 45 N.m (33 ft. lbs.)
    • Step 8: All + 70° Turn Do not use a torque wrench for this step.
    • Step 9: All + 70° Turn Do not use a torque wrench for this step.
    Fig 6: Positioning Camshaft Alignment Holes Vertically
    GC0144138Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    Do not rotate the camshafts more than a few degrees independently of the crankshaft. Valve to piston contact could occur resulting in possible valve damage. If the camshafts need to be rotated more than a few degrees, first move the pistons away from the cylinder heads by rotating the crankshaft counterclockwise to a position 30° before-top-dead-center. Once the camshafts are returned to their top-dead-center position, rotate the crankshaft clockwise to return the crankshaft to top-dead-center.

    NOTE:

    If the hydraulic lifters are being reused, reassemble them into their original locations.

  11. If removed, install the hydraulic lifters. Refer to LIFTER(S), HYDRAULIC, INSTALLATION .
    NOTE:

    If the rocker arms are being reused, reassemble them into their original locations.

  12. Install the rocker arms and camshafts. Refer to CAMSHAFT, ENGINE, INSTALLATION .
  13. Rotate the camshafts clockwise to TDC by positioning the alignment holes (1) vertically.
    Fig 7: Left Cam Chain Tensioner, Arm, Guide & Bolts
    GC0144140Courtesy of CHRYSLER GROUP, LLC
  14. Install the left cam chain guide (2) with two bolts (4) and tighten the T30 bolts (4) to 12 N.m (9 ft. lbs.).
  15. Install the left cam chain tensioner (5) to the cylinder head with two bolts (6) and tighten the T30 bolts (6) to 12 N.m (9 ft. lbs.).
  16. Reset the left cam chain tensioner (5) by lifting the pawl (3), pushing back the piston and installing Tensioner Pin (special tool #8514, Pins, Tensioner) (7). Refer to Engine/Valve Timing - Standard Procedure .
  17. Install the left tensioner arm (1).
    Fig 8: Idler Sprocket, Plated Link & Arrow
    GC0144165Courtesy of CHRYSLER GROUP, LLC
  18. Press the left intake cam phaser onto the intake camshaft, install and hand tighten the oil control valve.
    CAUTION:

    Always reinstall timing chains so that they maintain the same direction of rotation. Inverting a previously run chain on a previously run sprocket will result in excessive wear to both the chain and sprocket.

  19. Drape the left side cam chain over the left intake cam phaser and onto the idler sprocket (1) so that the arrow (3) is aligned with the plated link (2) on the cam chain.
    Fig 9: Phaser Timing Marks, Oil Control Valves & LH Camshaft Phaser Lock
    GC0144164Courtesy of CHRYSLER GROUP, LLC
  20. While maintaining this alignment, route the cam chain around the exhaust and intake cam phasers so that the plated links are aligned with the phaser timing marks (1). Position the left side cam phasers so that the arrows (3) point toward each other and are parallel to the valve cover sealing surface (5). Press the exhaust cam phaser onto the exhaust cam, install and hand tighten the oil control valve (2).
    NOTE:

    Minor rotation of a camshaft (a few degrees) may be required to install the camshaft phaser or phaser lock.

  21. Install the LH Camshaft Phaser Lock (special tool #10202, Locks, Camshaft/Phaser) (4) and tighten the oil control valves (2) and (6) to 150 N.m (110 ft. lbs.).
    Fig 10: Rotating Crankshaft Clockwise To Position No. 1 Piston At TDC On Exhaust Stroke
    GC0144142Courtesy of CHRYSLER GROUP, LLC
  22. Remove the LH Camshaft Phaser Lock (special tool #10202, Locks, Camshaft/Phaser).
  23. Remove the Tensioner Pin (special tool #8514, Pins, Tensioner) (1) from the left cam chain tensioner.
  24. Rotate the crankshaft clockwise two complete revolutions stopping when the dimple (4) on the crankshaft is aligned the with the block/bearing cap junction (5).
  25. While maintaining this alignment, verify that the arrows on the left side cam phasers (2) point toward each other and are parallel to the valve cover sealing surface (3) and that the right side cam phaser arrows (7) point away from each other and the scribe lines (9) are parallel to the valve cover sealing surface (8).

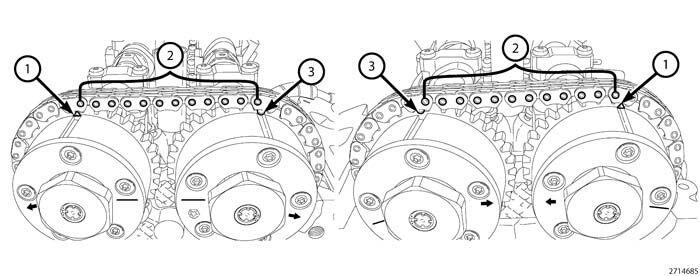

    Fig 11: Chain Pins, Exhaust Cam Phaser Triangle Marking & Circle Marking
    GC0144189Courtesy of CHRYSLER GROUP, LLC
  26. There should be 12 chain pins (2) between the exhaust cam phaser triangle marking (1) and the intake cam phaser circle marking (3).
  27. If the engine timing is not correct, repeat this procedure.
  28. Install the engine timing cover, crankshaft vibration damper, upper and lower oil pans and cylinder head covers. Refer to COVER(S), ENGINE TIMING, INSTALLATION .
    Fig 12: Left Intake Manifold Support Brackets & Retaining Bolts
    GC0144406Courtesy of CHRYSLER GROUP, LLC
  29. Install the left upper intake manifold support brackets (1) and tighten the stud (2) finger tight.

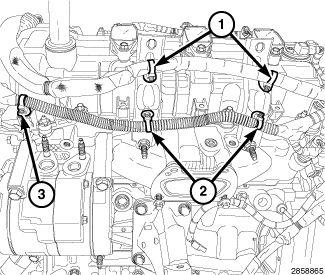

    Fig 13: Starter Wire Harness Retainers, Main Wire Harness Retainer & Manifold Support Bracket Retainers
    GC0144415Courtesy of CHRYSLER GROUP, LLC
  30. Fasten two starter wire harness retainers (1) to the upper intake manifold support brackets.
  31. Fasten one main wire harness retainer (3) to the left cylinder head cover and two retainers (2) to the upper intake manifold support brackets.
    Fig 14: Electrical Connector, Ignition Coils & Ignition Coil Retaining Bolts
    GC0144206Courtesy of CHRYSLER GROUP, LLC
  32. Install the spark plugs and tighten to 18 N.m (13 ft. lbs.). Refer to SPARK PLUG, INSTALLATION .
  33. Install the ignition coils (2). Refer to COIL, IGNITION, INSTALLATION .

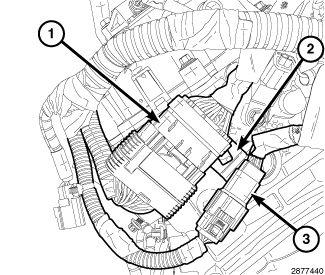

    Fig 15: Injection/Ignition Electrical Connector & Engine Oil Pressure/Temperature Sensor Electrical Connector
    GC0144449Courtesy of CHRYSLER GROUP, LLC
  34. Connect the ignition coil capacitor electrical connector.
  35. Connect the injection/ignition electrical connector (1).
  36. Connect the engine oil pressure/temperature sensor electrical connector (3).
  37. Fasten the injection/ignition wire harness and the oil pressure/temperature sensor wire harness from the retainer bracket (2) on the rear of the left cylinder head.

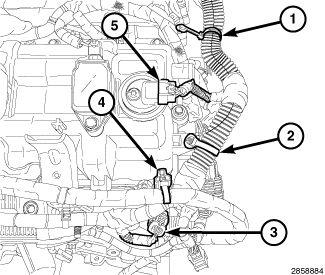

    Fig 16: ECT Sensor Connector, CMP Sensor & Main Wire Harness Retainers
    GC0144416Courtesy of CHRYSLER GROUP, LLC
  38. Connect the Engine Coolant Temperature (ECT) sensor electrical connector (3).
    Fig 17: Upper Intake Manifold Bolt Tightening Sequence
    GC0144185Courtesy of CHRYSLER GROUP, LLC
  39. Install the upper and lower intake manifolds. Refer to MANIFOLD, INTAKE, INSTALLATION .

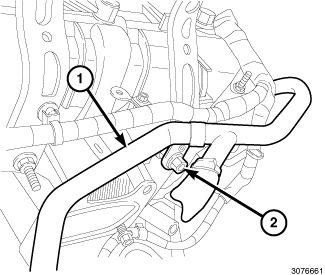

    Fig 18: Heater Core Return Tube Upper Support Bracket Retaining Nut & Tube
    GC0144665Courtesy of CHRYSLER GROUP, LLC
  40. Position the heater core return tube (1) onto the upper support bracket, install the retaining nut (2) and tighten to 12 N.m (9 ft. lbs.).

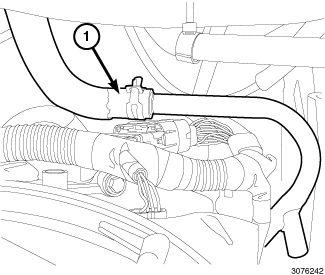

    Fig 19: Heater Core Return Hose
    GC0144664Courtesy of CHRYSLER GROUP, LLC
  41. Connect the heater core return hose (1).
    Fig 20: A/C Compressor, Nut, Stud & Three Bolts
    GC0144012Courtesy of CHRYSLER GROUP, LLC
  42. Position the A/C compressor (2), install the upper bolts (1) finger tight.
  43. Install the lower A/C compressor retaining studs (3) finger tight
  44. Tightened the A/C compressor upper bolts (1) to 25 N.m (18 ft. lbs.).
  45. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

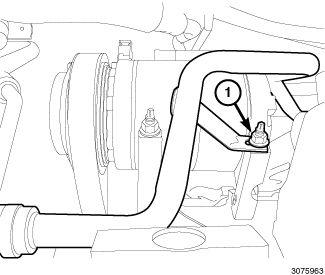

    Fig 21: Heater Core Return Tube Lower Support Bracket Retaining Nut
    GC0144661Courtesy of CHRYSLER GROUP, LLC
  46. Position the heater core return tube lower support bracket onto the A/C compressor lower retaining stud, install the nut (1) and tighten both A/C compressor lower retaining nuts to 25 N.m (18 ft. lbs.).

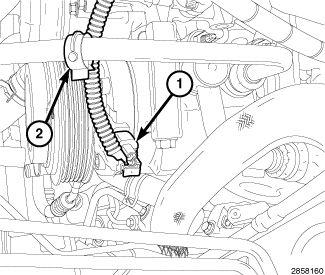

    Fig 22: A/C Compressor Electrical Connector & Wire Harness Retainer
    GC0144411Courtesy of CHRYSLER GROUP, LLC
  47. Connect the A/C compressor electrical connector (1) and fasten the wire harness retainer (2) to the A/C compressor discharge line.

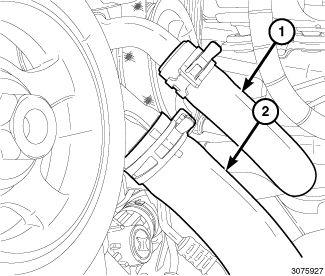

    Fig 23: Lower Heater Core Return Hose & Lower Radiator Hose
    GC0144660Courtesy of CHRYSLER GROUP, LLC
  48. Connect the lower heater core return hose (1) to the engine coolant pump housing.

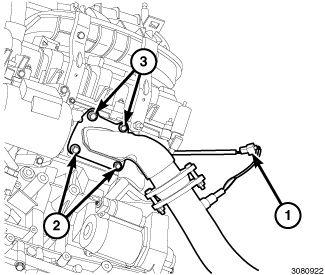

    Fig 24: Left Upstream Oxygen Sensor Electrical Connector & Down Pipe Flange Bolts
    GC0144668Courtesy of CHRYSLER GROUP, LLC
  49. Position the left down pipe onto the partially installed lower flange bolts (2).
  50. Install the upper down pipe flange bolts (1) and tighten to 23 N.m (17 ft. lbs.).
  51. Tighten the lower down pipe flange bolts (2) to 23 N.m (17 ft. lbs.).
  52. Connect the left upstream oxygen sensor electrical connector (4) to the main wire harness.
    Fig 25: Lower Splash Shield & Fasteners
    GC0095584Courtesy of CHRYSLER GROUP, LLC
  53. If removed, install the oil filter.
  54. Position the belly pan and install the retainers (1).
  55. Lower the vehicle.

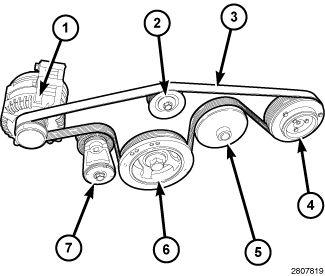

    Fig 26: Idler Pulley, Tensioner Arm, Belt, Idler, Tensioner & Belt
    GC0144013Courtesy of CHRYSLER GROUP, LLC
  56. Rotate the accessory drive belt tensioner (7) counterclockwise until it contacts the stop and install the accessory drive belt (3), then slowly rotate the tensioner into position.

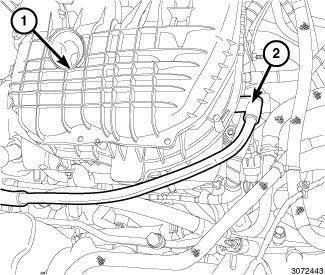

    Fig 27: Fresh Air Makeup Hose At Rear Of Intake Manifold
    GC0144653Courtesy of CHRYSLER GROUP, LLC
  57. Connect the fresh air makeup hose (2) to the rear of the intake manifold (1).

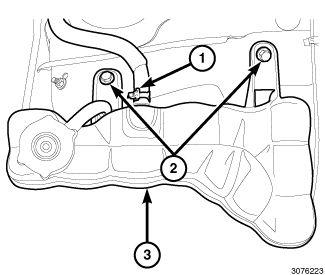

    Fig 28: Heater Core Purge Hose, Coolant Bottle Retaining Bolts & Coolant Bottle
    GC0144663Courtesy of CHRYSLER GROUP, LLC
  58. Position the coolant bottle (3) into the engine compartment.
  59. Install the coolant bottle retaining bolts (2) and tighten to 12 N.m (9 ft. lbs.).
  60. Connect the heater core purge hose (1) to the coolant bottle.

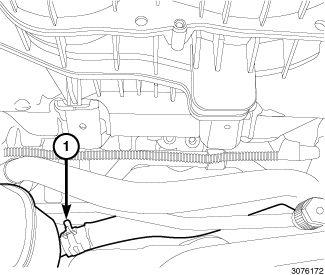

    Fig 29: Coolant Bottle Return Hose
    GC0144662Courtesy of CHRYSLER GROUP, LLC
  61. Connect the coolant bottle return hose (1).

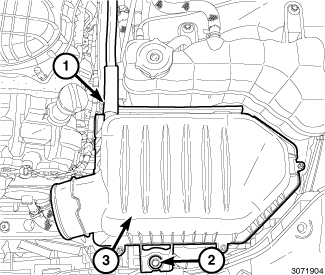

    Fig 30: Fresh Air Makeup Hose, Air Cleaner Housing & Bolt
    GC0144030Courtesy of CHRYSLER GROUP, LLC
  62. Position the air cleaner housing (3) into the vehicle.
  63. Install the air cleaner housing retaining bolt (2) and tighten to 12 N.m (9 ft. lbs.).
  64. Connect the fresh air makeup hose (1) to the air cleaner housing.

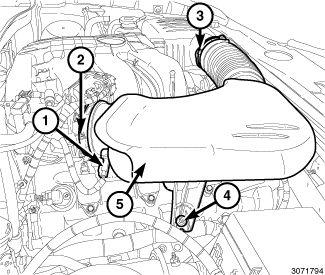

    Fig 31: Inlet Air Temperature (IAT) Sensor Electrical Connector, Air Inlet Hose Assembly & Fasteners
    GC0144029Courtesy of CHRYSLER GROUP, LLC
  65. Position the air inlet hose assembly (5) onto the throttle body and the air cleaner housing.
  66. Secure the air inlet hose assembly retaining grommet onto the ball stud (4).
  67. Tighten the clamp at the air cleaner housing (3) to 5 N.m (44 in. lbs.).
  68. Tighten the clamp (2) at the throttle body to 5 N.m (44 in. lbs.).
  69. Connect the Inlet Air Temperature (IAT) sensor electrical connector (1).
    Fig 32: Engine Cover
    GC0144028Courtesy of CHRYSLER GROUP, LLC
  70. Fill the crankcase with the specified type and amount of engine oil. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
  71. Fill the cooling system with the specified type and amount of engine coolant. Refer to STANDARD PROCEDURE .
  72. Position the engine cover (1) and secure the retaining grommets onto the ball studs.
    Fig 33: Negative Battery Cable
    GC0139402Courtesy of CHRYSLER GROUP, LLC
  73. Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
  74. Run the engine until it reaches normal operating temperature and check for leaks.
NOTE:

The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components.
