P2008-Intake Manifold Runner (Swirl) Control Circuit Open - Bank 1: Notes

WARNING: This page is about a different variant/trim than selected.

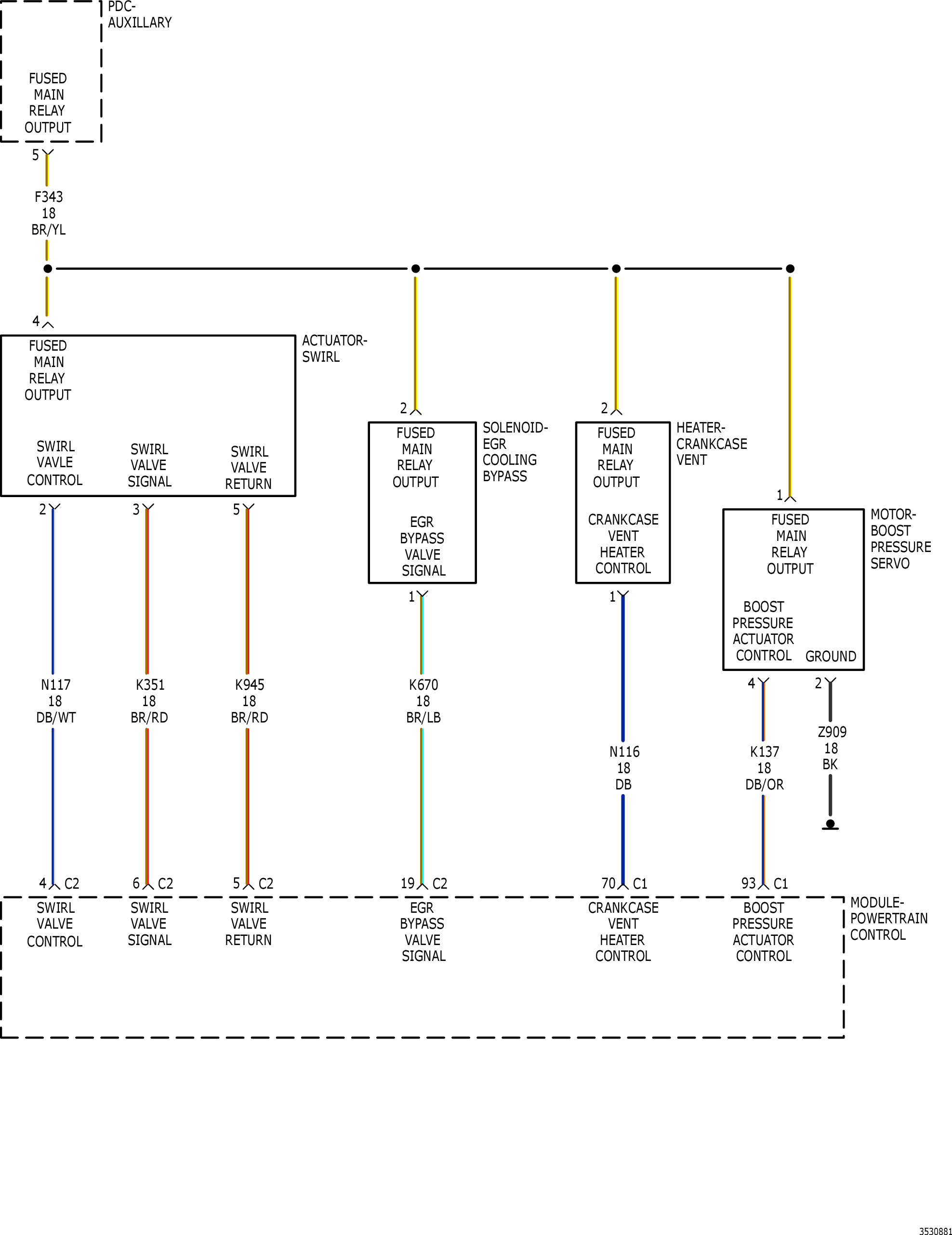

Fig 1: Intake Swirl Valve Control Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
