Diagnostic Test

WARNING: This page is about a different variant/trim than selected.

DTC IS ACTIVE
1. Turn the ignition on.
2. With the scan tool, select View DTCs. Record DTC and Freeze Frame information.
3. Start the engine and allow it to reach operating temperature.
  WARNING:
  When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in possible serious or fatal injury.

  NOTE:
  Review Freeze Frame information. Operate the vehicle under conditions similar to which the DTC was set.
4. With a scan tool, select View DTCs.
  Is the status Active for this DTC?

  Yes
  - Go To 2.
  No
  - Refer to STANDARD PROCEDURE and perform the INTERMITTENT CONDITION diagnostic procedure.
(K13) INJECTOR 3 CONTROL CIRCUIT SHORTED TO VOLTAGE

Fig 1: Checking Injector Control Circuit For Short To Voltage
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Remove the ASD Relay.
3. Disconnect the Powertrain Control Module (PCM) C2 harness connector.
4. Turn the ignition on.
5. Measure the voltage of the (K13) Injector 3 Control circuit at the Fuel Injector 3 harness connector.
  Is there any voltage present?

  Yes
  - Repair the (K13) Injector 3 Control circuit for a short to voltage.
  - Refer to STANDARD PROCEDURE and perform the POWERTRAIN VERIFICATION.
  No
  - Go To 3.
(K13) INJECTOR 3 CONTROL CIRCUIT SHORTED TO GROUND

Fig 2: Checking Fuel Injector Circuit For Short To Ground
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Measure the resistance between ground and the (K13) Injector 3 Control circuit at the Fuel Injector 3 harness connector.
  Is the resistance above 100 Ohms?

  Yes
  - Go To 4.
  No
  - Repair the (K13) Injector 3 Control circuit for a short to ground.
  - Refer to STANDARD PROCEDURE and perform the POWERTRAIN VERIFICATION.

FUEL INJECTOR 3 CIRCUIT RESISTANCE

Turn the ignition off.

Measure the resistance of the Fuel Injector 3 circuit between the ASD Relay Output terminal and the PCM C2 harness connector.

NOTE:

The resistance of the circuit will vary according to the temperature of the injector coil. Use the table below to determine the resistance range of the injector.

Fuel Injector Coil Resistance Based on Engine Temperature
Temperature	Resistance
-20° C (-4° F)	10 Ohms (+/-.6 Ohm)
20° C (68° F)	12 Ohms (+/-.6 Ohm)
60° C (140° F)	14 Ohms (+/-.6 Ohm)
100° C (212° F)	16 Ohms (+/-.6 Ohm)

Is the resistance of the injector within the specified range?

Yes

Go To 9.

Go To 5.

FUEL INJECTOR 3 WIRING AND CONNECTOR INSPECTION
1. Turn the ignition off.
2. Verify that the connector is properly connected to the injector.
3. Disconnect the Fuel Injector 3 connector and inspect the wiring and terminals for any condition that would result in a poor connection.
4. Look for any chafed, pierced, pinched, or partially broken wires.
5. Look for broken, bent, pushed out or corroded terminals.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Refer to STANDARD PROCEDURE and perform the POWERTRAIN VERIFICATION.
  No
  - Go To 6.
(F342) FUSED ASD RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE

Fig 3: Checking Fused ASD Relay Output Circuit For Open Or High Resistance
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Connect the Powertrain Control Module (PCM) C2 harness connector.
3. Install the ASD Relay.
4. Turn the ignition on.
5. With the scan tool, actuate the Auto Shutdown (ASD) Relay Control State.
6. Using a 12 volt test light connected to ground, check the (F342) Fused ASD Relay Output circuit in the Fuel Injector 3 harness connector.
  NOTE:
  The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

  Is the test light illuminated and bright?

  Yes
  - Go To 7.
  No
  - Repair the (F342) Fused ASD Relay Output circuit for an open circuit or high resistance.
  - Refer to STANDARD PROCEDURE and perform the POWERTRAIN VERIFICATION.
(K13) INJECTOR 3 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE

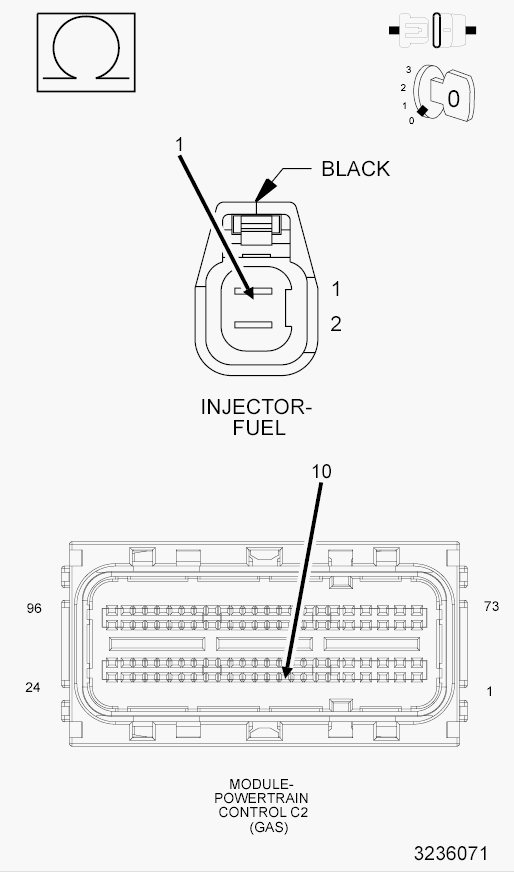

Fig 4: Checking Injector 3 Control Circuit For Open Or High Resistance
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Powertrain Control Module (PCM) C2 harness connector.
3. Measure the resistance of the (K13) Injector 3 Control circuit between the Fuel Injector 3 harness connector and the PCM C2 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 8.
  No
  - Repair the (K13) Injector 3 Control circuit for an open circuit or high resistance.
  - Refer to STANDARD PROCEDURE and perform the POWERTRAIN VERIFICATION.
FUEL INJECTOR 3
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Fuel Injector 3 and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Perform any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Refer to STANDARD PROCEDURE and perform the POWERTRAIN VERIFICATION.
  No
  - Replace the Fuel Injector 3 in accordance with the Service Information. Refer to INJECTOR(S), FUEL, REMOVAL .
  - Refer to STANDARD PROCEDURE and perform the POWERTRAIN VERIFICATION.
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Fuel Injector 3 and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Perform any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Refer to STANDARD PROCEDURE and perform the POWERTRAIN VERIFICATION.
  No
  - Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information. Refer to MODULE, POWERTRAIN CONTROL, REMOVAL .
  - Refer to STANDARD PROCEDURE and perform the POWERTRAIN VERIFICATION.
