P0688-Auto Shutdown Relay Sense Circuit Low: Notes

WARNING: This page is about a different variant/trim than selected.

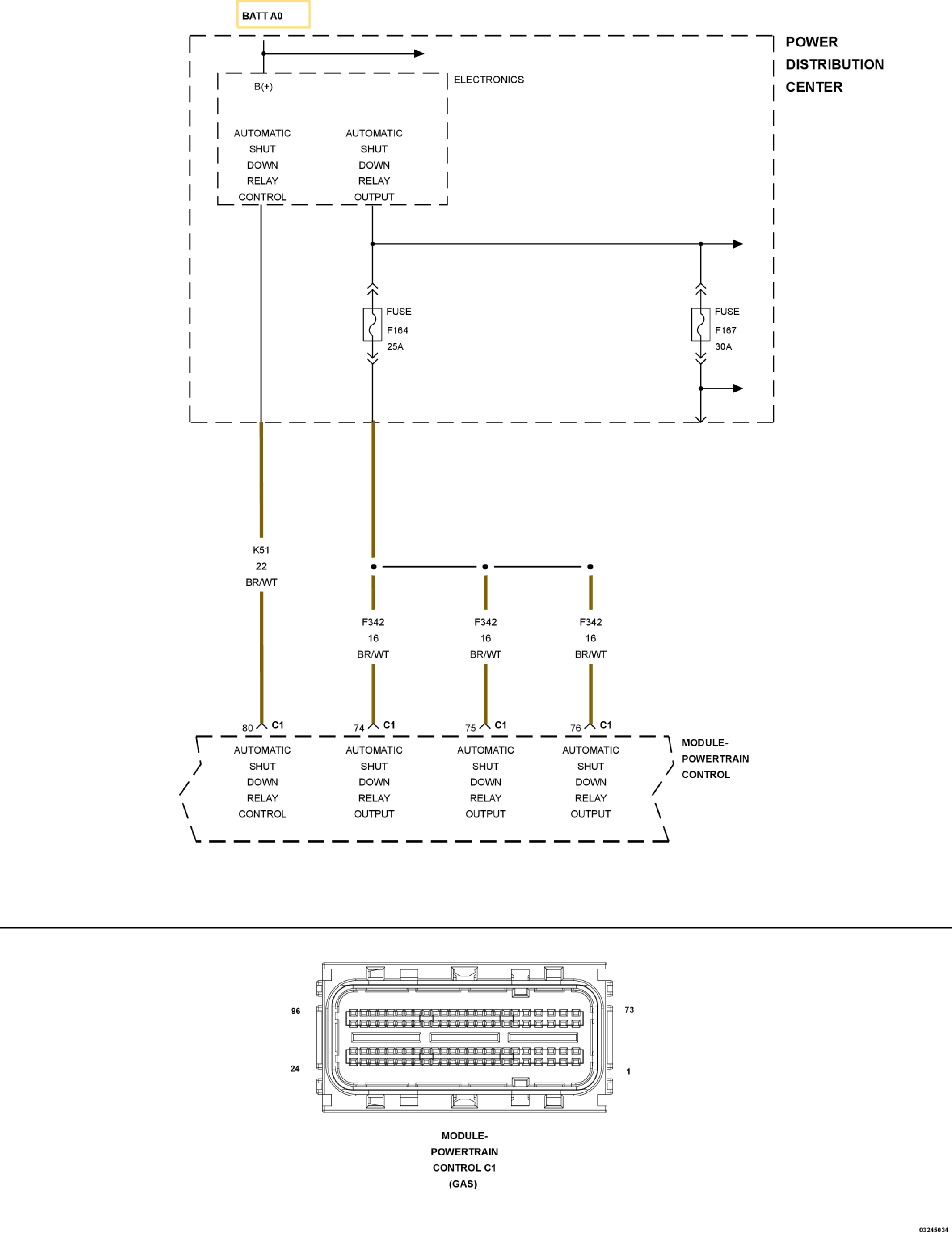

Fig 1: Auto Shutdown Relay Control Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
