Diagnostic Test

WARNING: This page is about a different variant/trim than selected.

ACTIVE DTC
NOTE:
Diagnose and repair any CAN bus, communication or implausible signal DTCs before proceeding with this test.

NOTE:
Diagnose and repair any system voltage or sensor reference voltage DTCs before continuing with this test.

NOTE:
Make sure the A/C refrigerant System is properly charged in accordance with the Service Information. Refer to SPECIFICATIONS .
1. Start the engine and allow it to reach normal operating temperature.
  WARNING:
  When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in possible serious or fatal injury.
2. With the scan tool, select View DTCs.
  Is the DTC Active at this time?

  Yes
  - Go To 2.
  No
  - Perform the INTERMITTENT CONDITION diagnostic procedure. Refer to INTERMITTENT CONDITION .
(K852) 5-VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

Fig 1: Measuring Voltage Of A/C Pressure Sensor Supply Circuit In A/C Pressure Transducer Harness Connector
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the A/C Pressure Transducer harness connector.
3. Disconnect the PCM C1 harness connector.
4. Turn the ignition on.
5. Measure the voltage of the (K852) 5-Volt Supply circuit in the A/C Pressure Transducer harness connector.
  Is there any voltage present?

  Yes
  - Repair the (K852) 5-Volt Supply circuit for a short to voltage.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 3.
(C18) A/C PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

Fig 2: Measuring Voltage Of A/C Pressure Sensor Signal Circuit In A/C Pressure Transducer Harness Connector
Courtesy of CHRYSLER GROUP, LLC
1. Measure the voltage of the (C18) A/C Pressure Sensor Signal circuit in the A/C Pressure Transducer harness connector.
  Is there any voltage present?

  Yes
  - Repair the (C18) A/C Pressure Sensor Signal circuit for a short to voltage.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 4.
(C18) A/C PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO THE (K852) 5-VOLT SUPPLY CIRCUIT

Fig 3: Measuring Resistance Between A/C Pressure Sensor Signal Circuit & Supply Circuit In A/C Pressure Transducer Harness Connector
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance between the (C18) A/C Pressure Sensor Signal circuit and the (K852) 5-Volt Supply circuit in the A/C Pressure Transducer harness connector.
  Is the resistance below 100 Ohms?

  Yes
  - Repair the (C18) A/C Pressure Sensor Signal circuit for a short to the (K852) 5-Volt Supply circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 5.
(C18) A/C PRESSURE SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

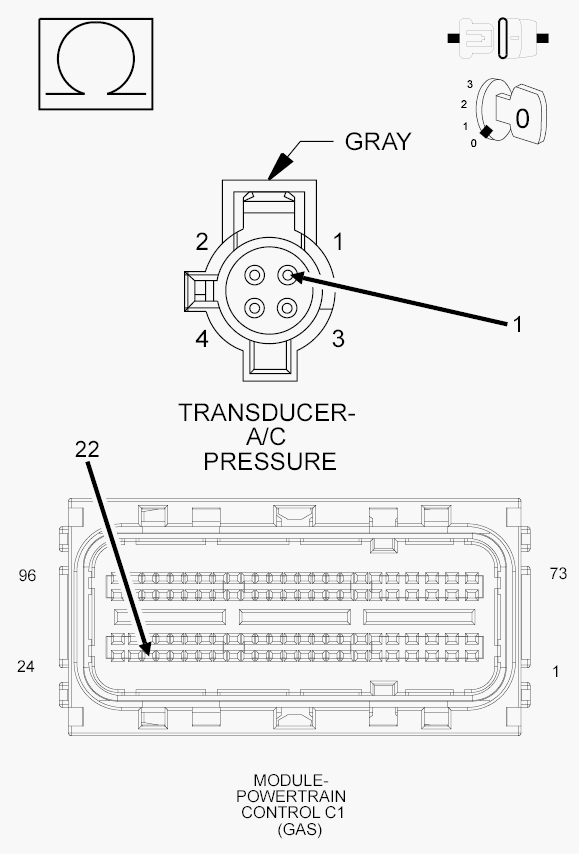

Fig 4: Checking A/C Pressure Sensor Signal Circuit For Open Or High Resistance
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Measure the resistance of the (C18) A/C Pressure Sensor Signal circuit between the A/C Pressure Transducer harness connector and the PCM C1 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 6.
  No
  - Repair the (C18) A/C Pressure Sensor Signal circuit for an open circuit or high resistance.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
(K914) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

Fig 5: Checking Sensor Ground Circuit For Open Or High Resistance
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance of the (K914) Sensor Ground circuit between the A/C Pressure Transducer harness connector and the PCM C2 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 7.
  No
  - Repair the (K914) Sensor Ground circuit for an open circuit or high resistance.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
A/C PRESSURE TRANSDUCER

Fig 6: Checking A/C Pressure Transducer
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Connect the PCM harness connectors.
3. Connect a jumper wire between the (K914) Sensor Ground circuit and the (C18) A/C Pressure Sensor Signal circuit in the A/C Pressure Transducer harness connector.
4. Turn the ignition on.
5. With the scan tool, read the A/C Pressure Transducer signal voltage.
  Is the voltage below 1.0 Volt with the jumper wire in place?

  Yes
  - Replace the A/C Pressure Transducer in accordance with the Service Information. Refer to TRANSDUCER, A/C PRESSURE, REMOVAL .
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 8.
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the A/C Pressure Transducer and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Perform any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information. Refer to MODULE, POWERTRAIN CONTROL, REMOVAL .
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
