Procedures

STANDARD PROCEDURE - OUTER TIE ROD END LUBRICATION

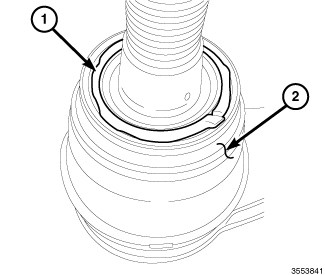

NOTE: View is typical.






NOTE: If a new tie rod end is to be installed, make sure the boot (2) is properly lubricated.

Any time the outer tie rod end is disconnected from the knuckle, before assembly, clean all old grease and debris from the boot with a clean cloth and apply outer tie rod grease P/N 68088623AA (1) to the boot (2) as shown.
