Starter - Installation

3.6L

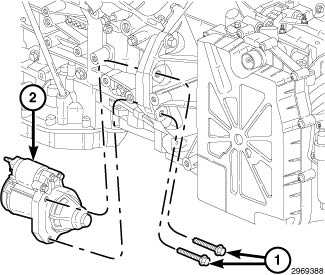

1. Install the stater (2).
2. Install the starter retainers (1).Tighten to 55 Nm (40.5 Ft Lbs).





3. Install the B+ cable (3) and retainer (2).Tighten to 13 Nm (115 In. Lbs.).
4. Install the field generator connector (1).

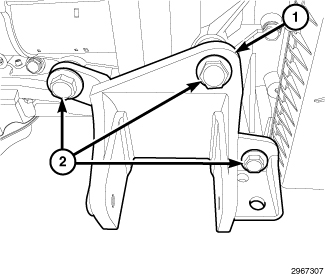

5. Install the the engine mount bracket.
6. Install the engine mount bracket retainers (2).Tighten to 55 Nm (41 Ft. Lbs.).
7. Install the engine mount through bolt.Tighten to 61 Nm (45 Ft. Lbs.).





8. Install the catalytic converter Catalytic Converter - Installation.
9. Connect the battery negative cable.
